Transmission Control Module (TCM): Removal

1. Raise deck lid.
2. Disconnect battery negative cable.
3. Loosen 60 way retaining screw, located in the center of the 60 way connector. Disconnect connector.
4. Remove transmission control module mounting screws and lift module from vehicle. See Fig 1 .

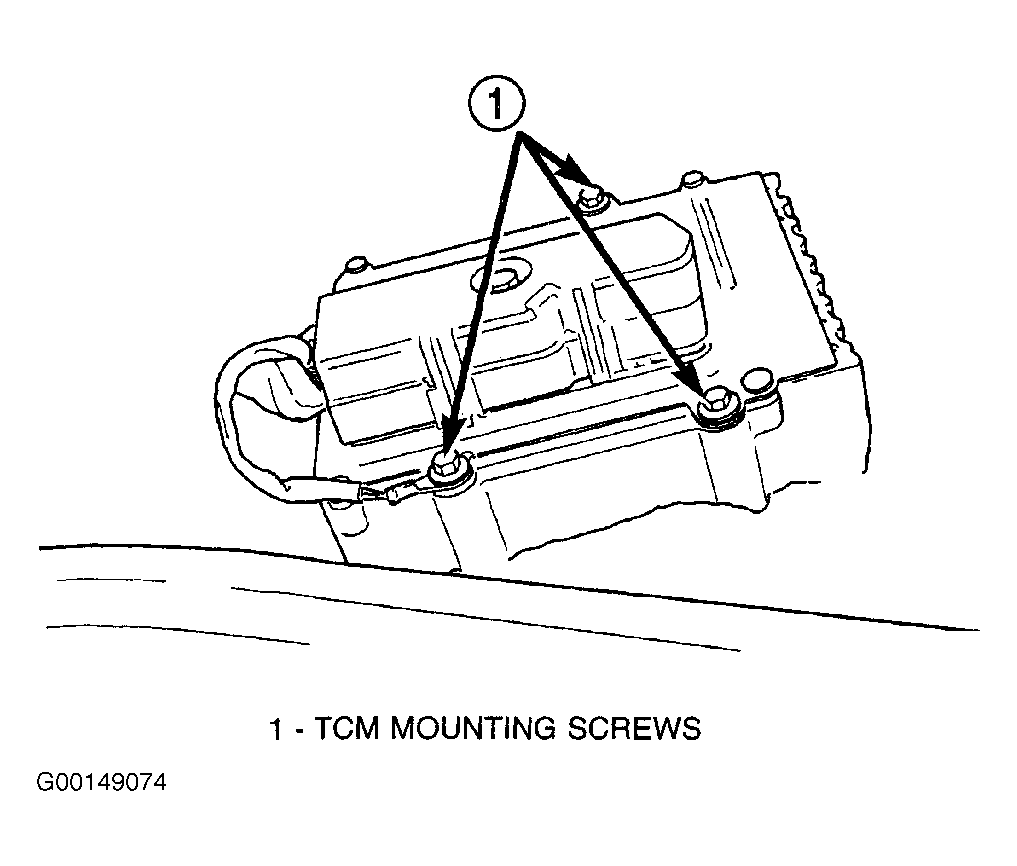

Fig 1: Removing & Installing TCM

Courtesy of CHRYSLER CORP.
