COMPONENT LOCATIONS

Component Location
Body Control Module Behind Left Side Kick Panel. See Fig 1 .
Data Link Connector (DLC) Behind Left Side Kick Panel. See Fig 1 .
Decklid Release Relay In Micro Relay Center
Fuse Block Behind Left Side Of Instrument Panel
Horn Relay In Power Distribution Center
Micro Relay Center Behind Glove Box. See Fig 2 .
Power Distribution Center Left Front Corner Of Engine Compartment, On Frame Rail
Powertrain Control Module Right Side Of Engine Compartment, Behind Body Panel. See Fig 3 .
Transmission Control Module Right Rear Wheelwell. See Fig 4 .
G106 Left Front Corner Of Engine Compartment. See Fig 5 .
G200 On Right Side Stanchion, Near Radio. See Fig 6 .
G201 On Left Side Stanchion, Near Radio. See Fig 7 .
G301 Inboard Side Of Right Frame Rail, Near Transmission
Fig 1: Locating Body Control Module (BCM) & Data Link Connector
G00058682Courtesy of CHRYSLER CORP.

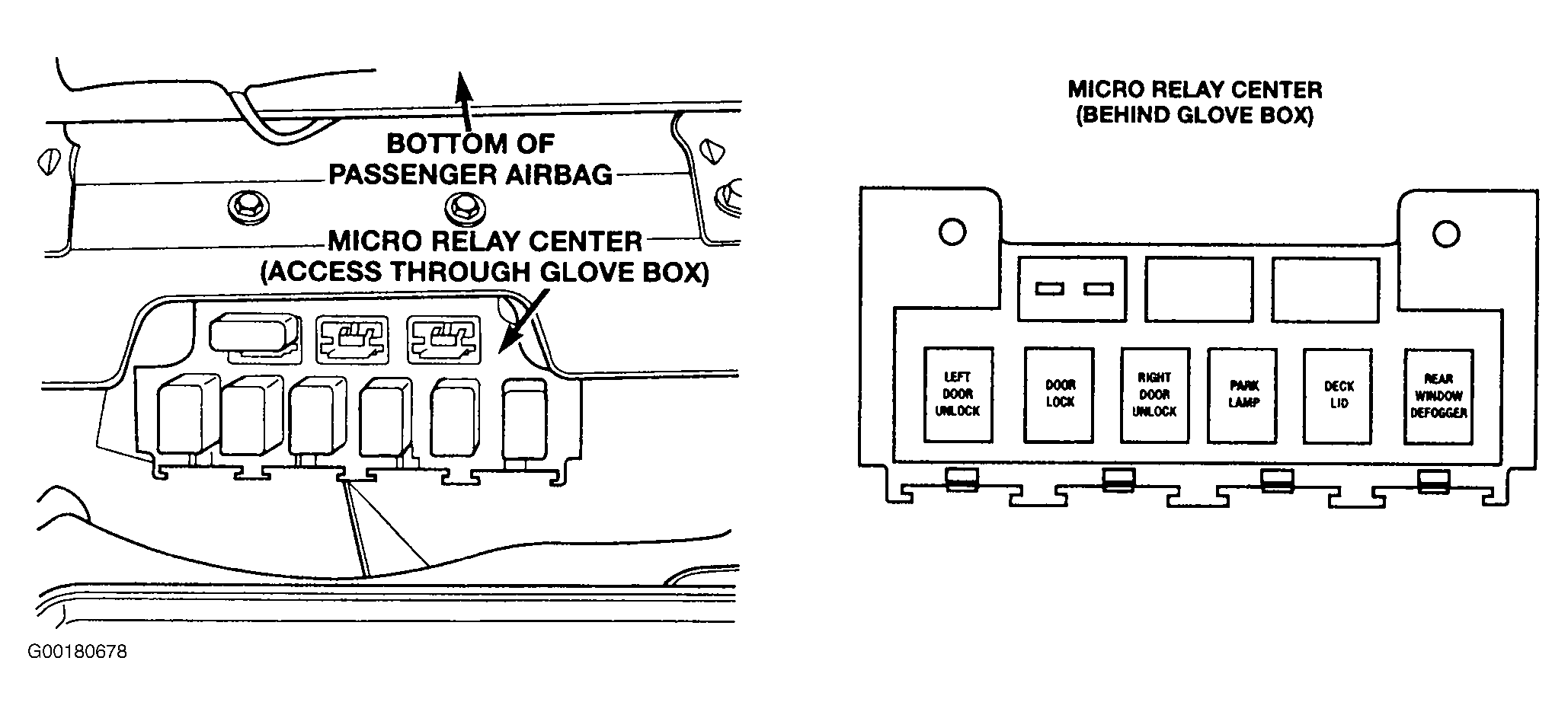

Fig 2: Locating Micro Relay Center
G00180678Courtesy of CHRYSLER CORP.
Fig 3: Locating Powertrain Control Module (PCM)
G00058670Courtesy of CHRYSLER CORP.

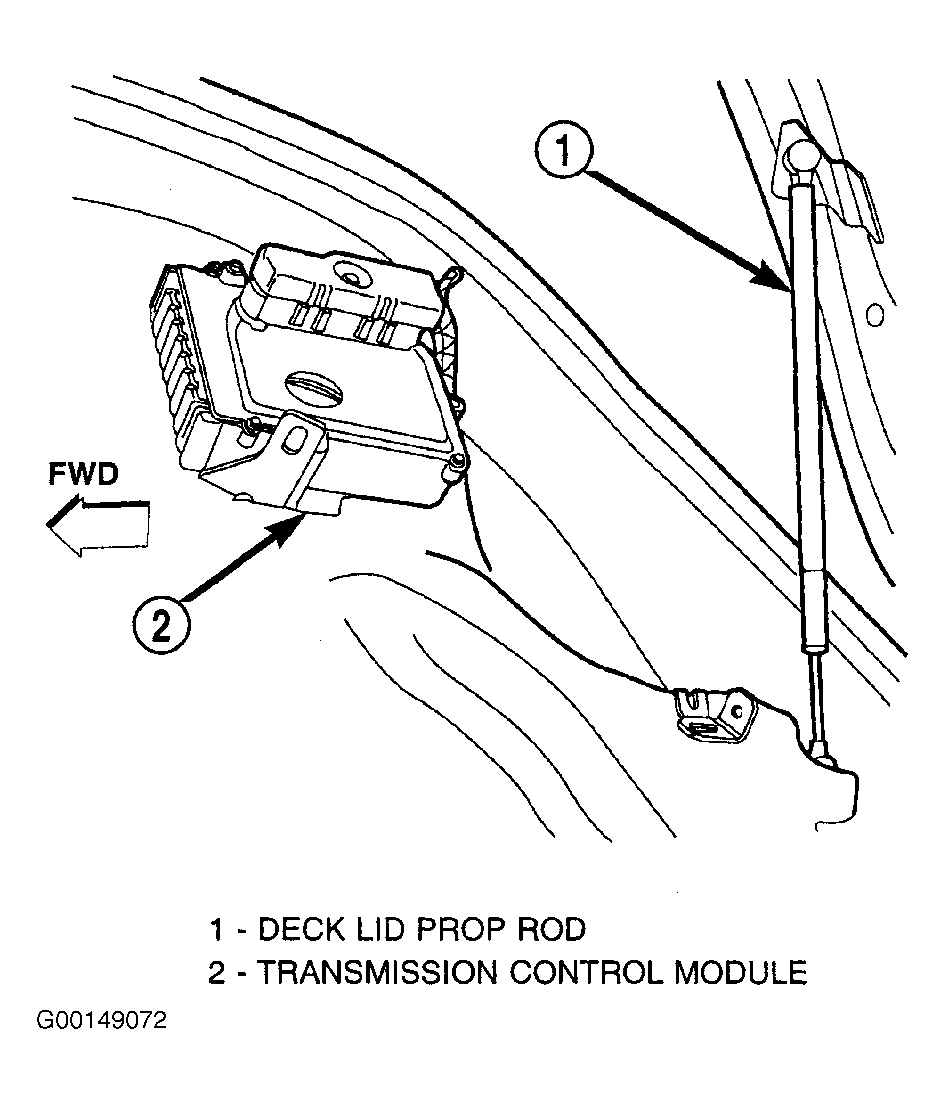

Fig 4: Locating Transmission Control Module (TCM)
G00149072Courtesy of CHRYSLER CORP.
Fig 5: Locating Ground G106
G00166196Courtesy of DAIMLERCHRYSLER CORPORATION

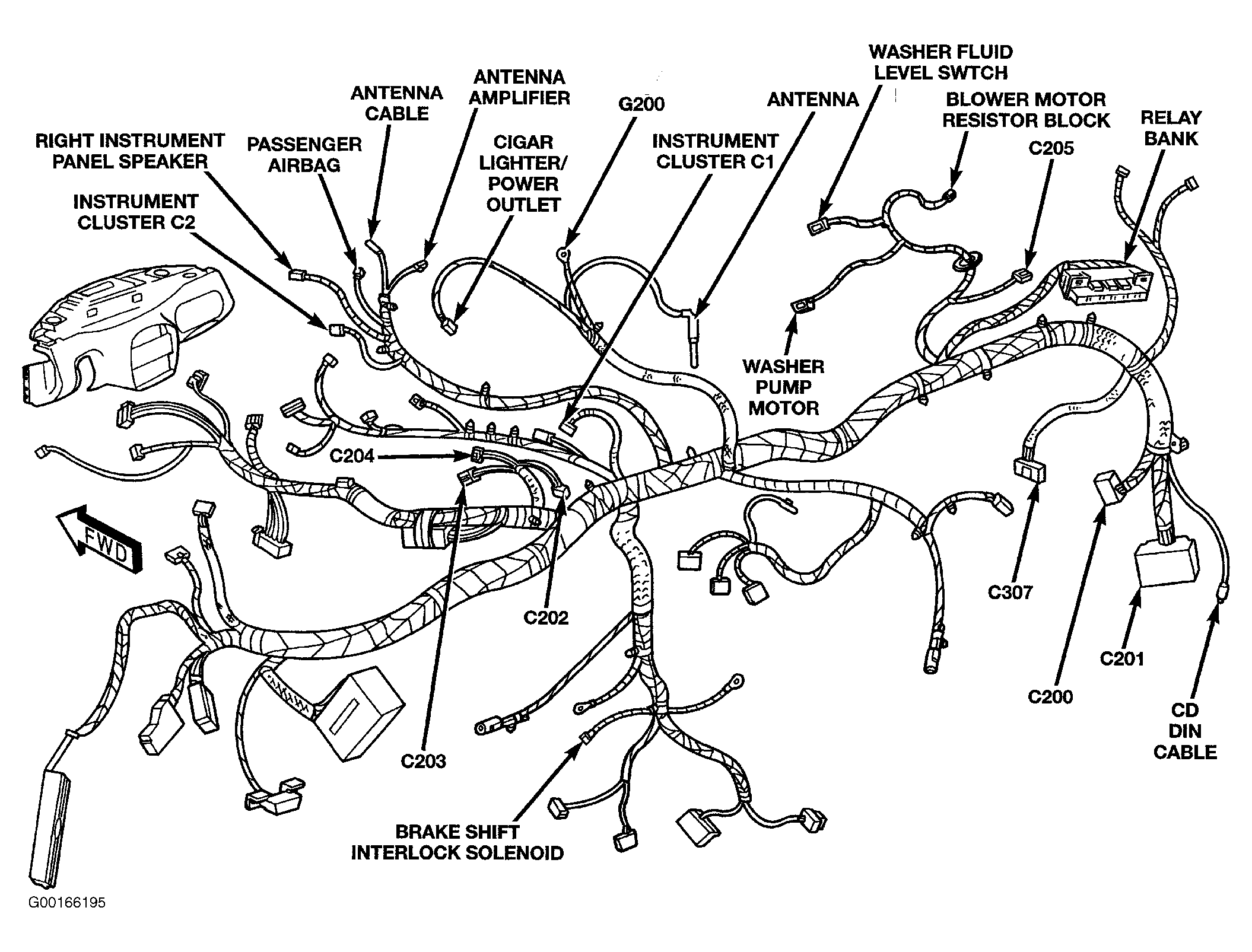

Fig 6: Locating Ground G200
G00166195Courtesy of DAIMLERCHRYSLER CORPORATION

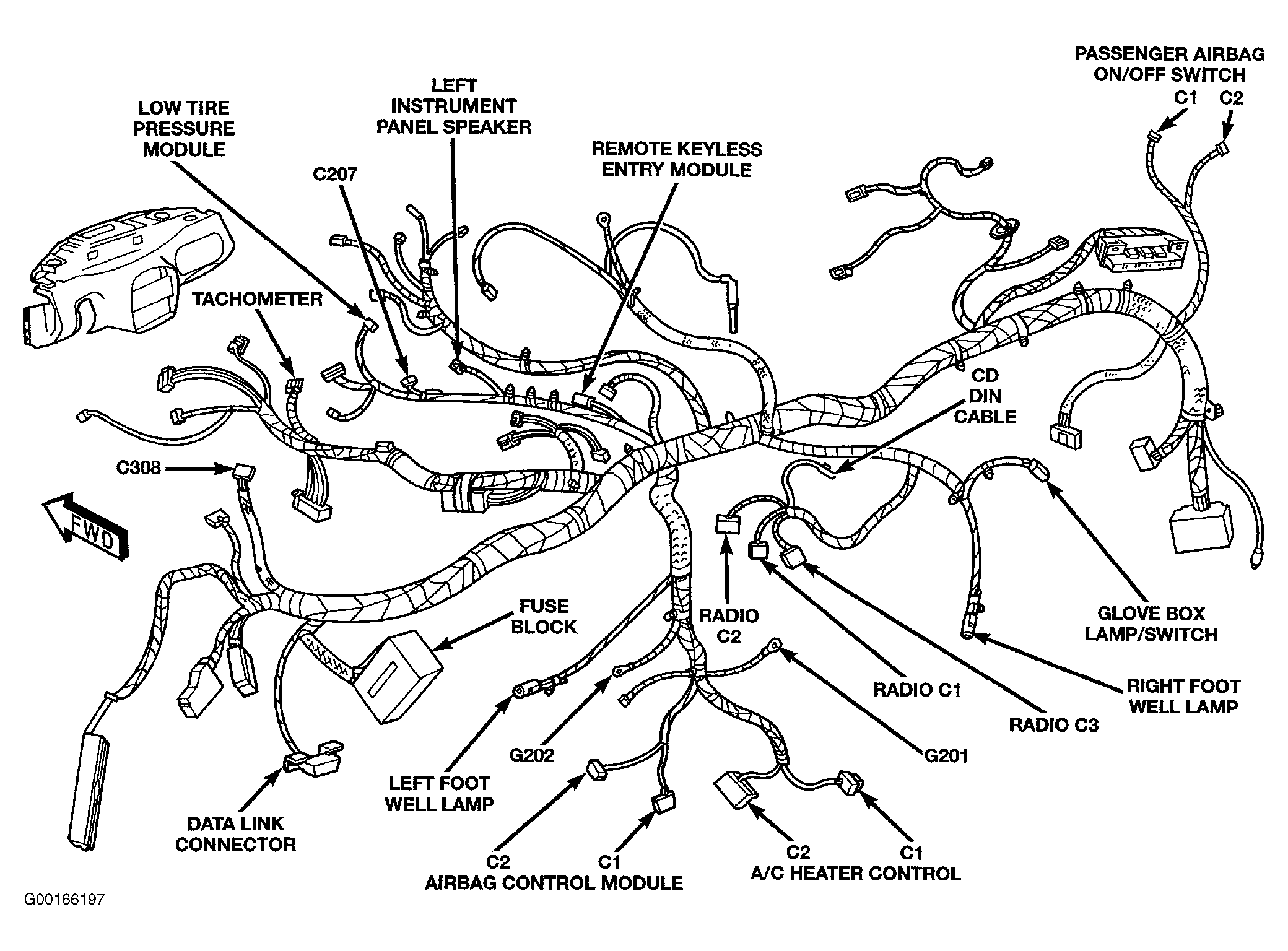

Fig 7: Locating Ground G201
G00166197Courtesy of DAIMLERCHRYSLER CORPORATION
