Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module | Behind Left Cowl Kick Panel. See Fig 1. |
| Data Link Connector (DLC) | Behind Left Cowl Kick Panel. See Fig 1. |
| Decklid Release Relay | In Micro Relay Center. See Fig 3. |
| Door Lock Relay | In Micro Relay Center. See Fig 3. |
| Driver Door Unlock Relay | In Micro Relay Center. See Fig 3. |
| Fuse Box | Behind Left Side Of Instrument Panel |
| Micro Relay Center | Behind And Above Glove Box. See Fig 3. |
| Passenger Door Unlock Relay | In Micro Relay Center. See Fig 3. |
| Power Distribution Center | Left Front Corner Of Engine Compartment, On Frame Rail |

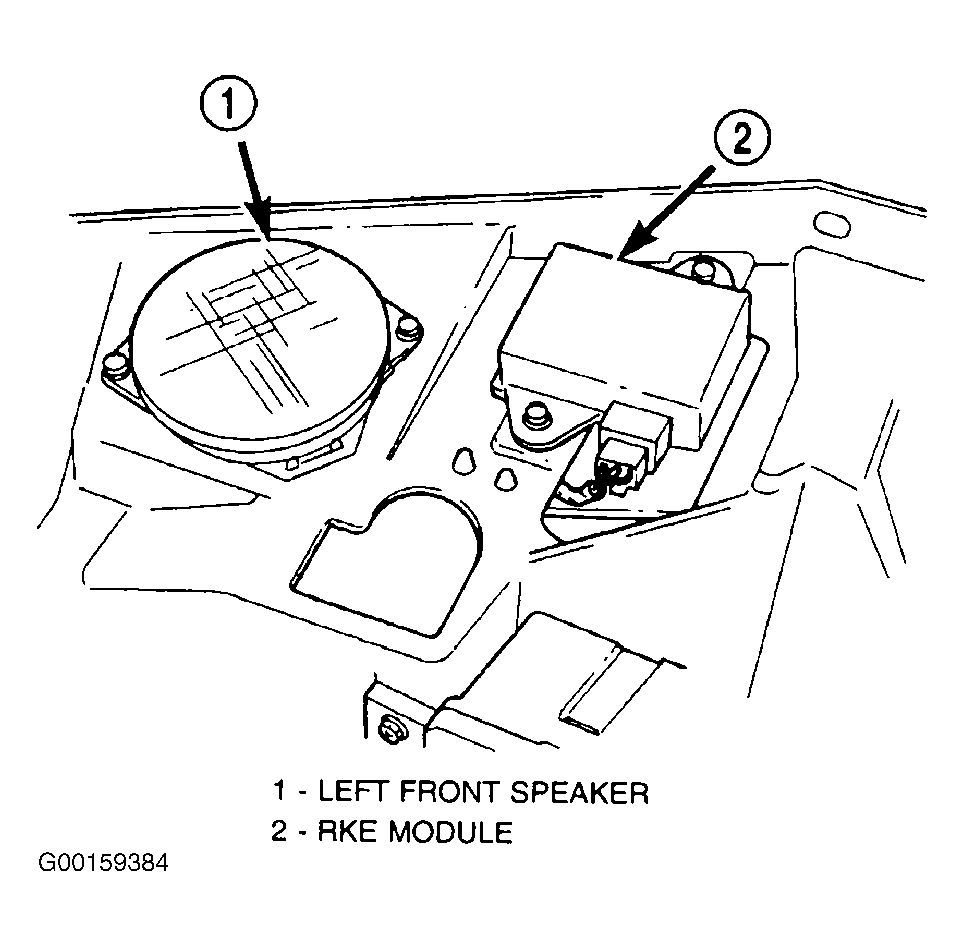

| Remote Keyless Entry Module | Under Instrument Panel Cover Next To Left Speaker. See Fig 4. |
| G200 | On Right Side Stanchion, Near Radio. See Fig 5. |
| G201 | On Left Side Stanchion, Near Radio. See Fig 6. |
| G301 | Inboard Side Of Right Frame Rail, Near Transmission |
