Possible Causes

  1. Door Locks System Check
  2. RKE Transmitter Battery Voltage Low
  3. RKE Transmitter Not Programmed To The RKE Module
  4. RKE Transmitter
  5. Fused Battery Positive Circuit Open
  6. RKE Module Ground Circuit Open
  7. RKE Program Enable Circuit Short To Ground
  8. RKE Interface Circuit Short To Voltage
  9. RKE Program Enable Circuit Open
  10. RKE Module
  11. RKE Interface Circuit Short To Ground
  12. RKE Interface Circuit Open
  13. BCM - RKE Interface Shorted To Voltage
  14. BCM - RKE Program Enable Shorted To Ground
  15. BCM - RKE Interface Open
  16. BCM - No RKE Signal Throughput
Fig 1: Test N: Remote Keyless Entry Inoperative - Steps 1-2 (1 Of 4)
G00159408Courtesy of CHRYSLER CORP.

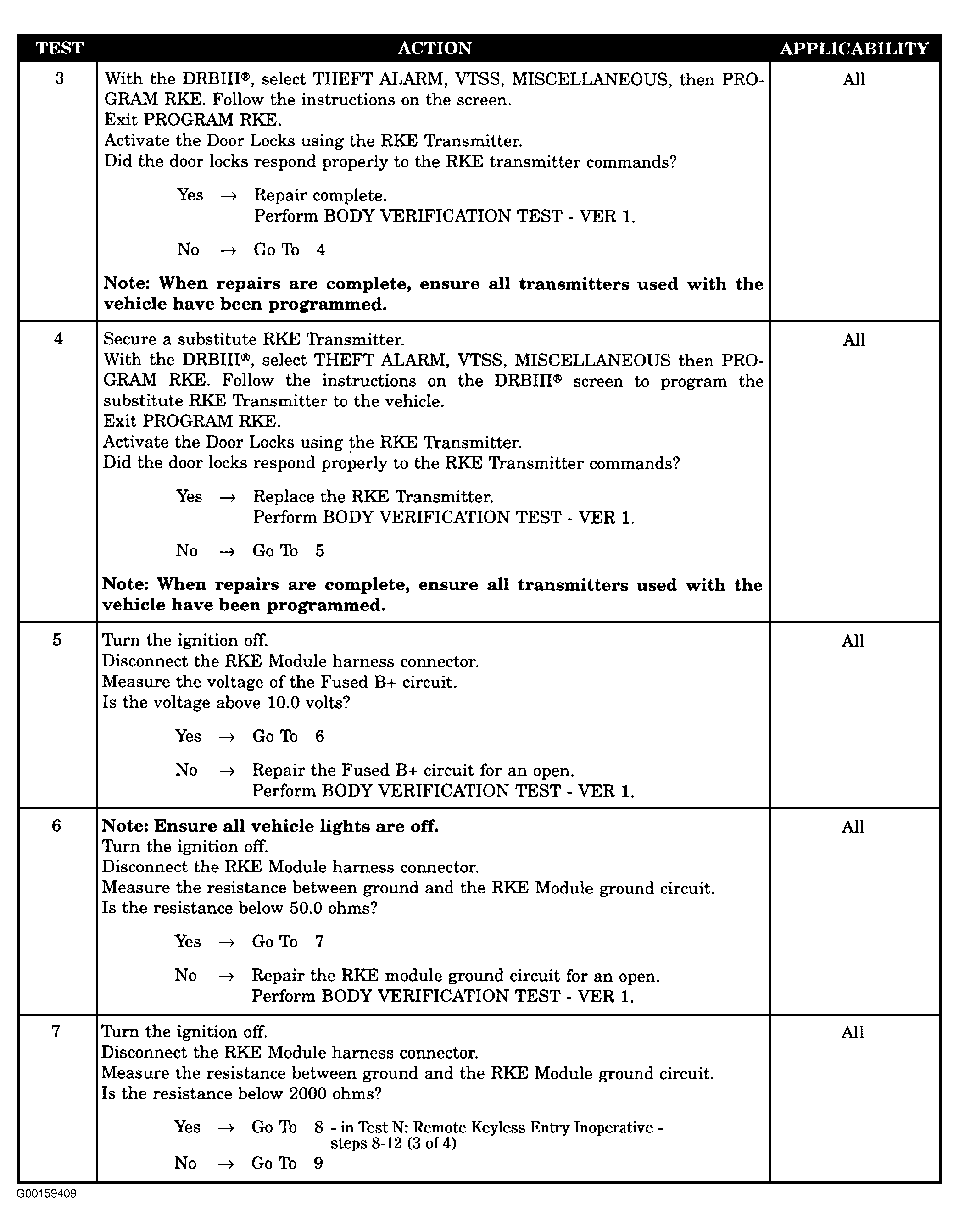

Fig 2: Test N: Remote Keyless Entry Inoperative - Steps 3-7 (2 Of 4)
G00159409Courtesy of CHRYSLER CORP.

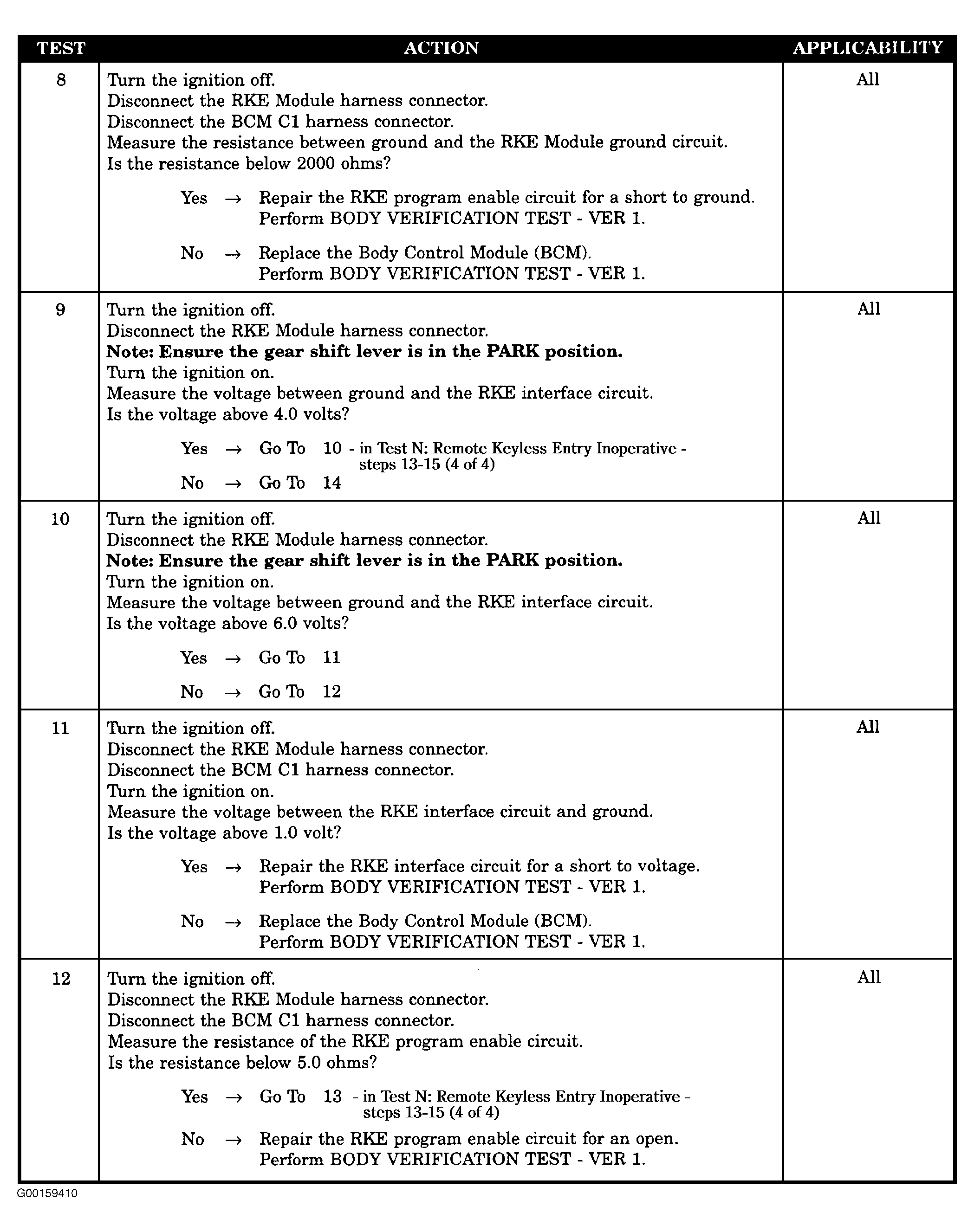

Fig 3: Test N: Remote Keyless Entry Inoperative - Steps 8-12 (3 Of 4)
G00159410Courtesy of CHRYSLER CORP.
Fig 4: Test N: Remote Keyless Entry Inoperative - Steps 13-15 (4 Of 4)
G00159411Courtesy of CHRYSLER CORP.
