Wiring Diagrams: Notes

NOTE: For additional wiring diagrams and information on connector identification, splice and ground locations, see SYSTEM WIRING DIAGRAMS article.

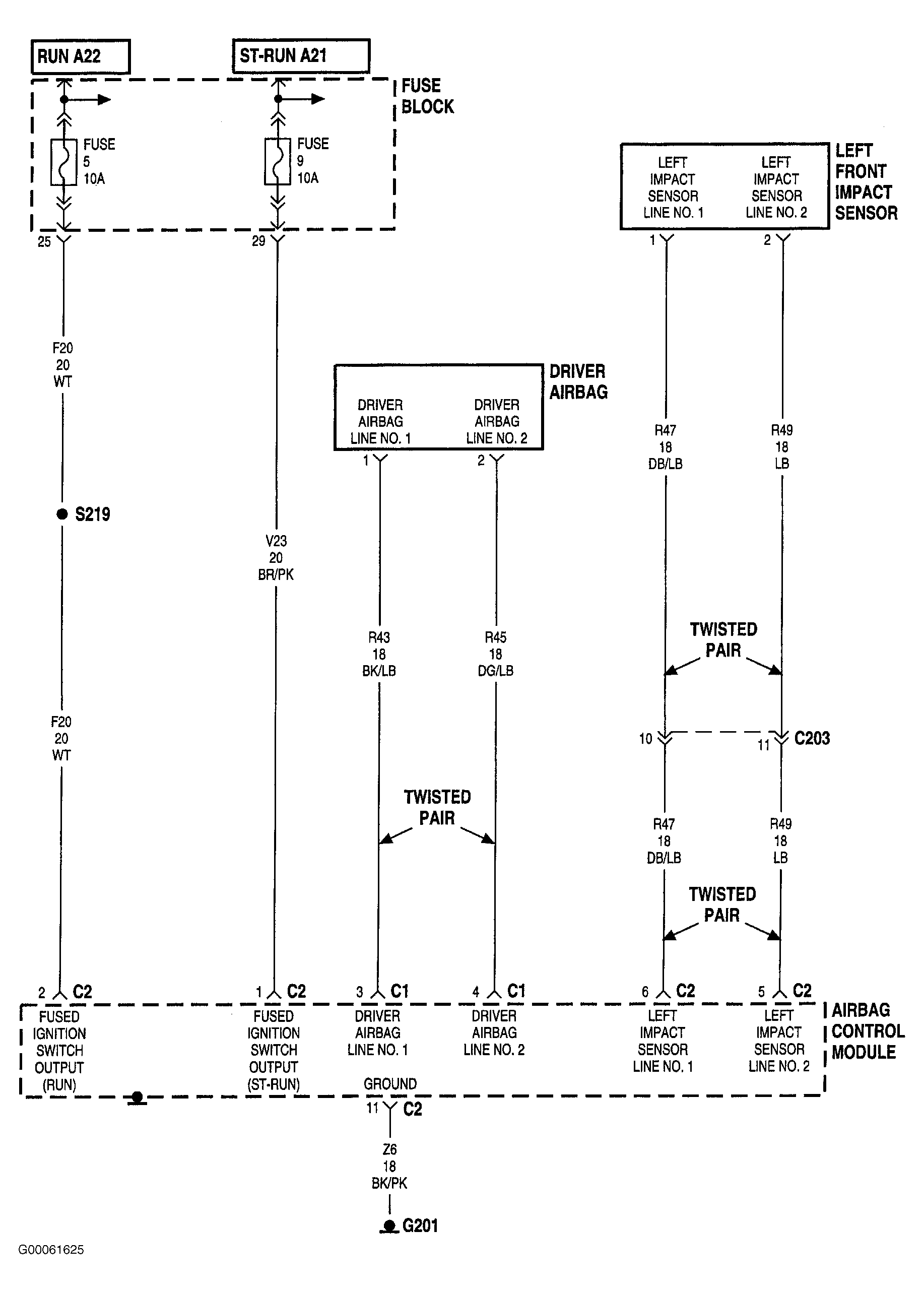

Fig 1: Air Bag System Wiring Diagram 1997 & 1999 (1 Of 3)

Courtesy of CHRYSLER CORP.

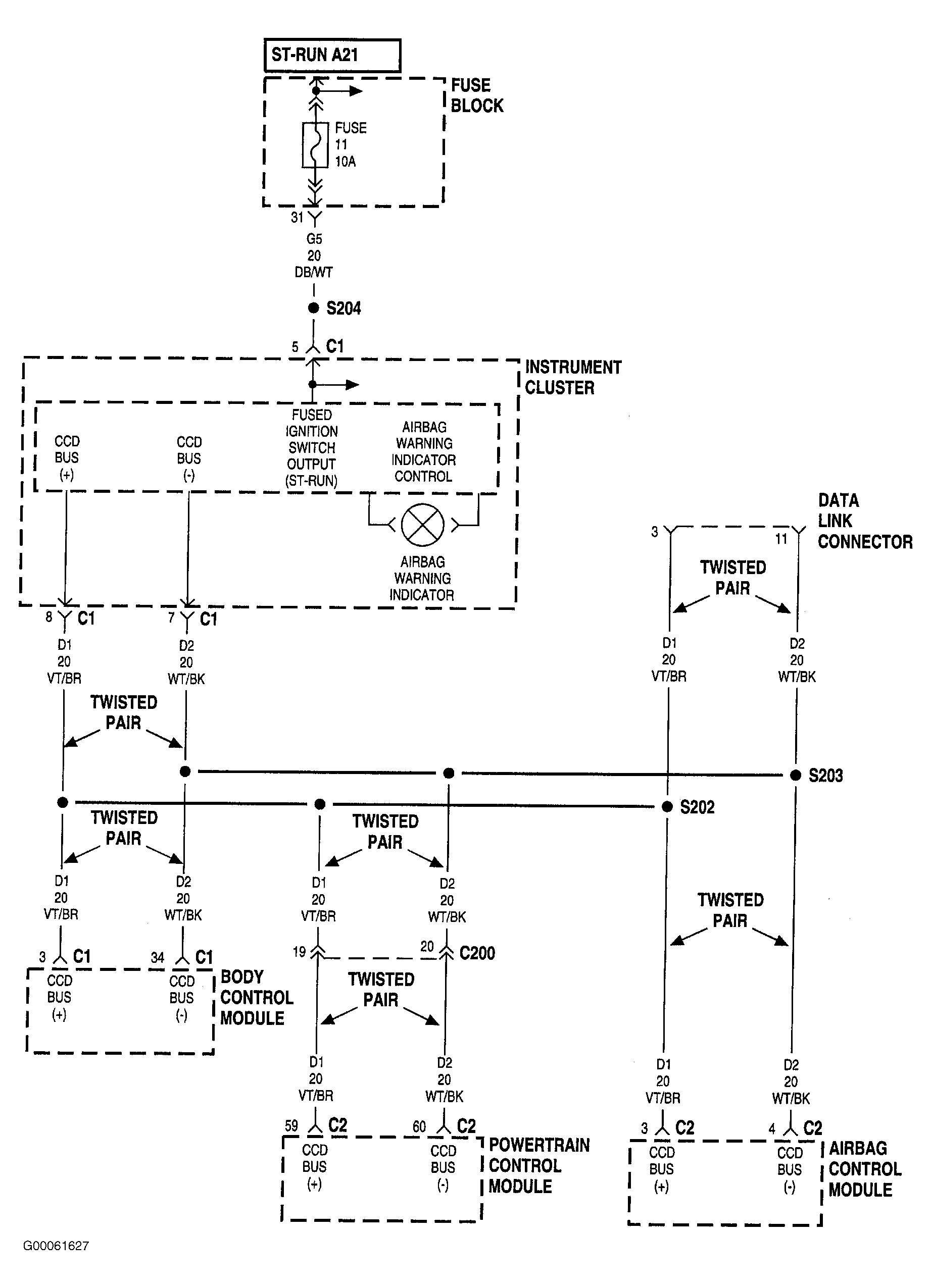

Fig 2: Air Bag System Wiring Diagram 1997 & 1999 (2 Of 3)

Courtesy of CHRYSLER CORP.

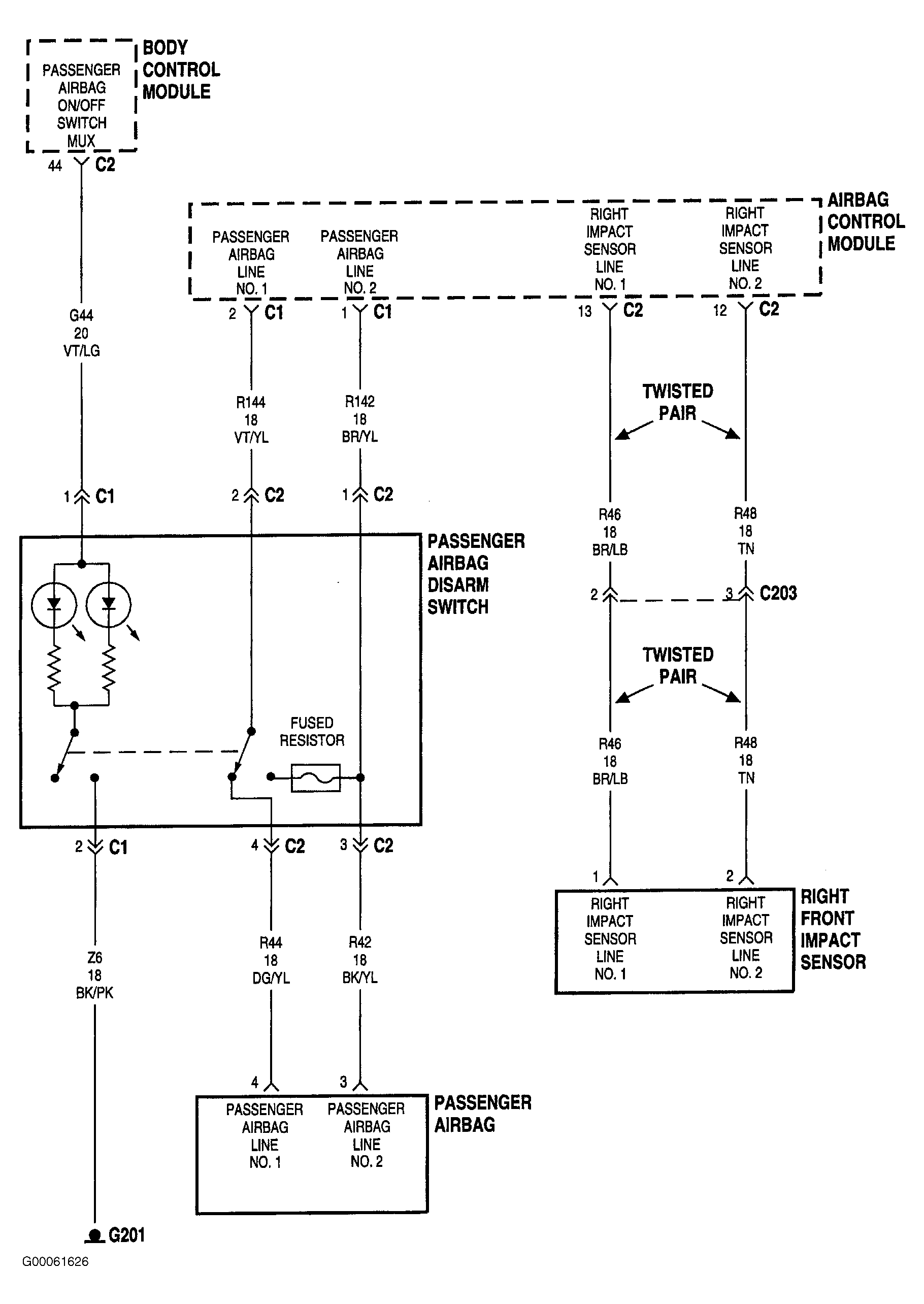

Fig 3: Air Bag System Wiring Diagram 1997 & 1999 (3 Of 3)

Courtesy of CHRYSLER CORP.

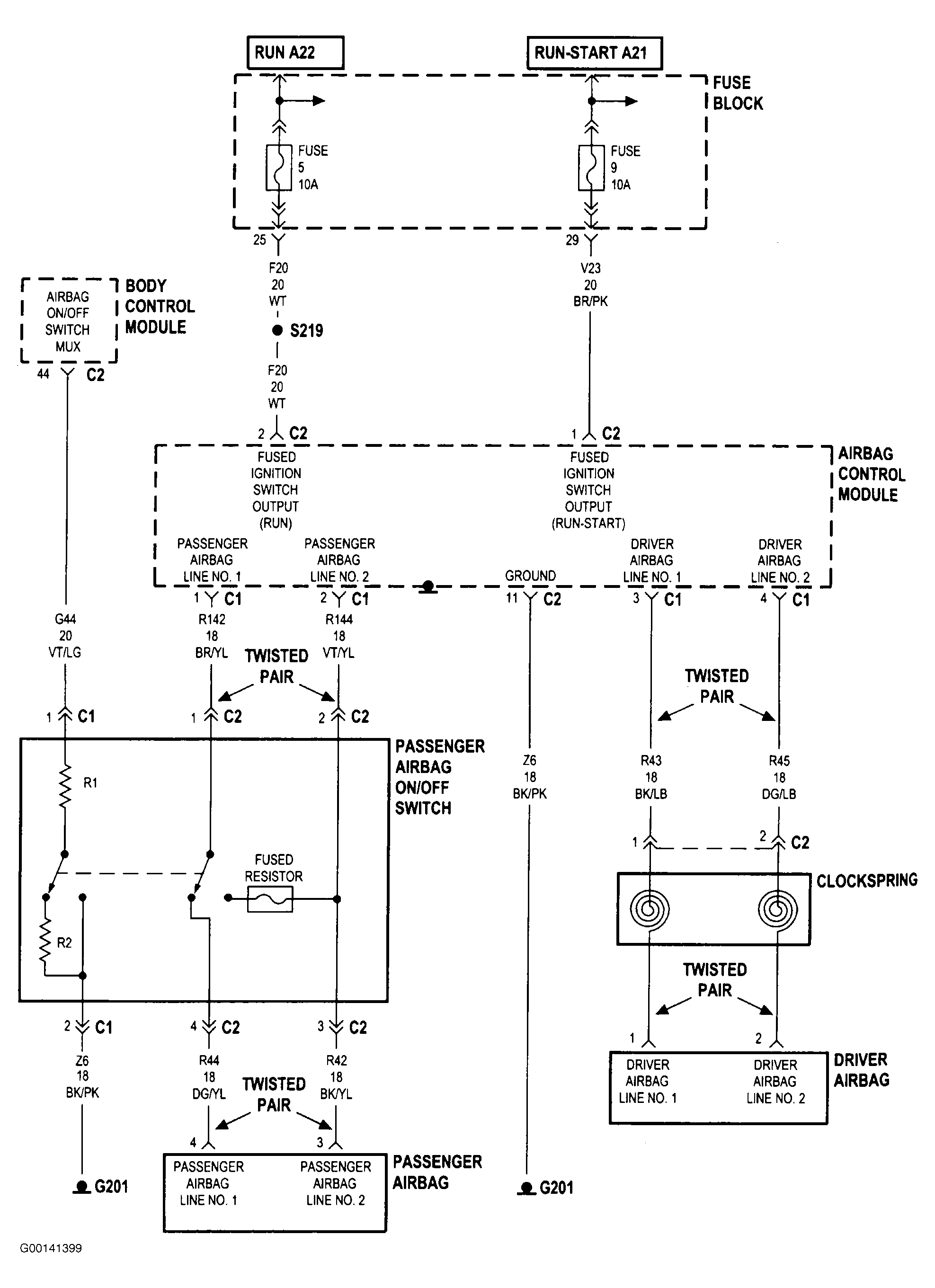

Fig 4: Air Bag System Wiring Diagram 2000-01 (1 Of 3)

Courtesy of CHRYSLER CORP.

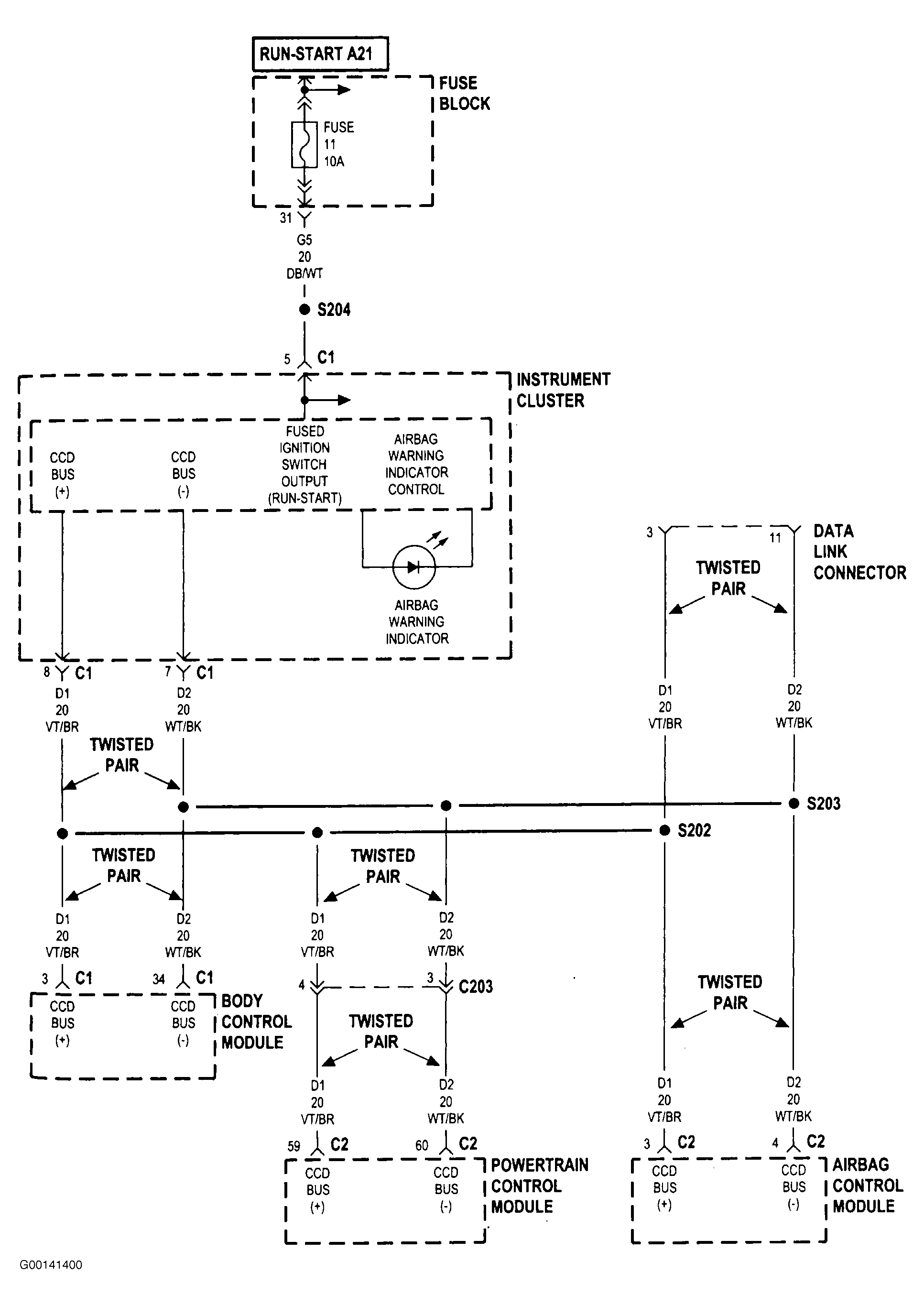

Fig 5: Air Bag System Wiring Diagram 200-01 (2 Of 3)

Courtesy of CHRYSLER CORP.

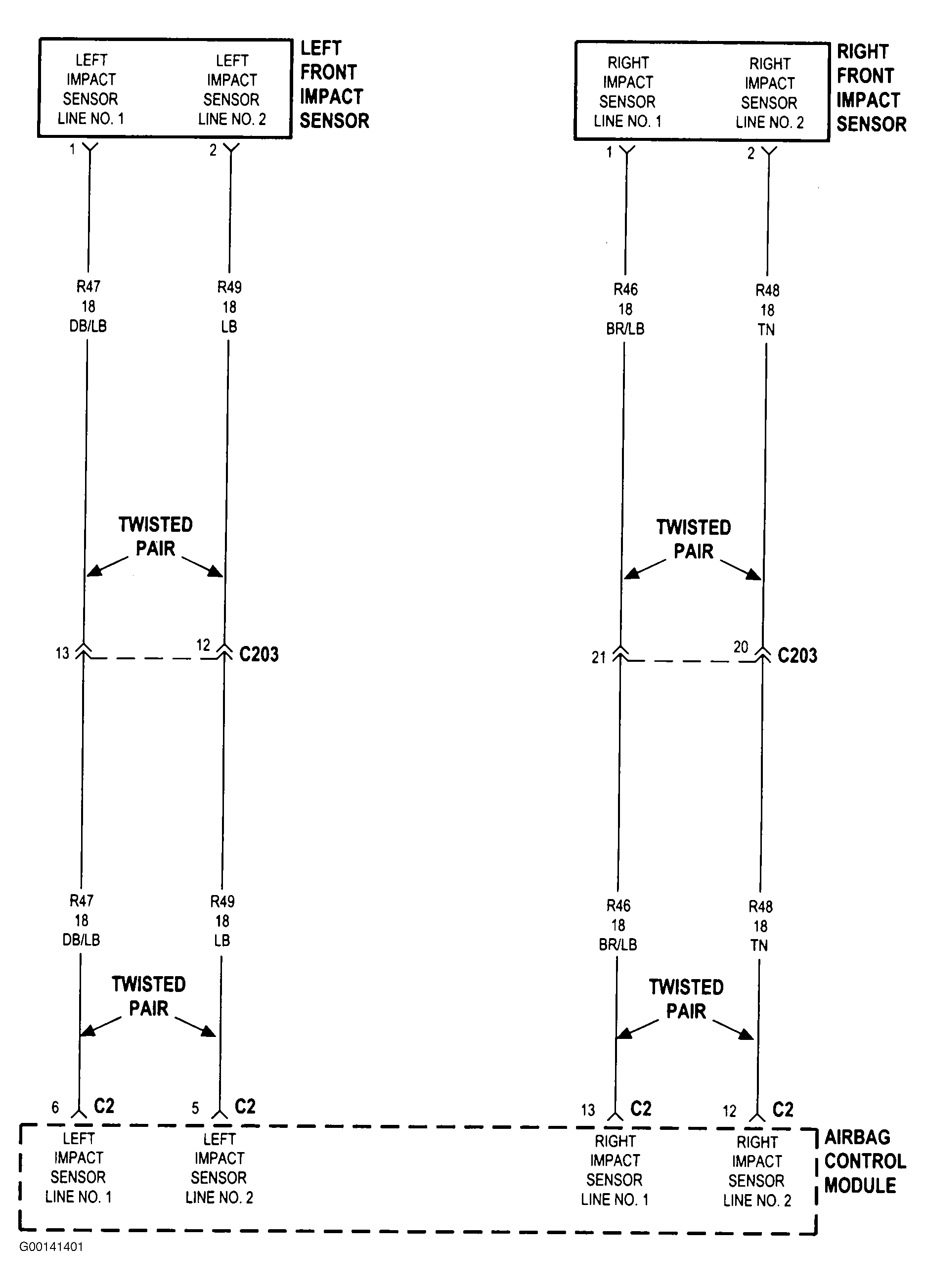

Fig 6: Air Bag System Wiring Diagram 2000-01 (3 Of 3)

Courtesy of CHRYSLER CORP.
