Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

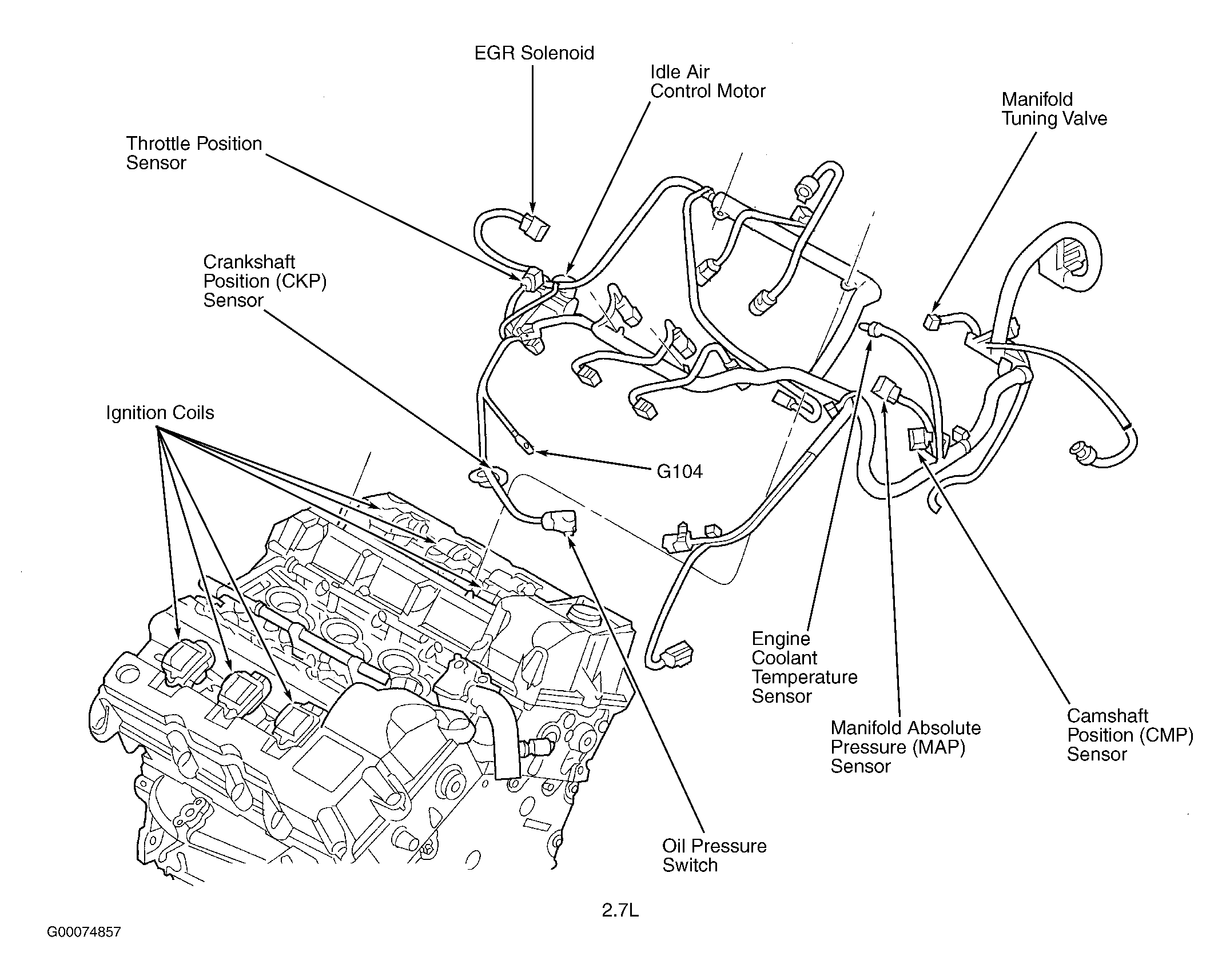

Fig 1: Engine

Courtesy of DAIMLERCHRYSLER CORP.

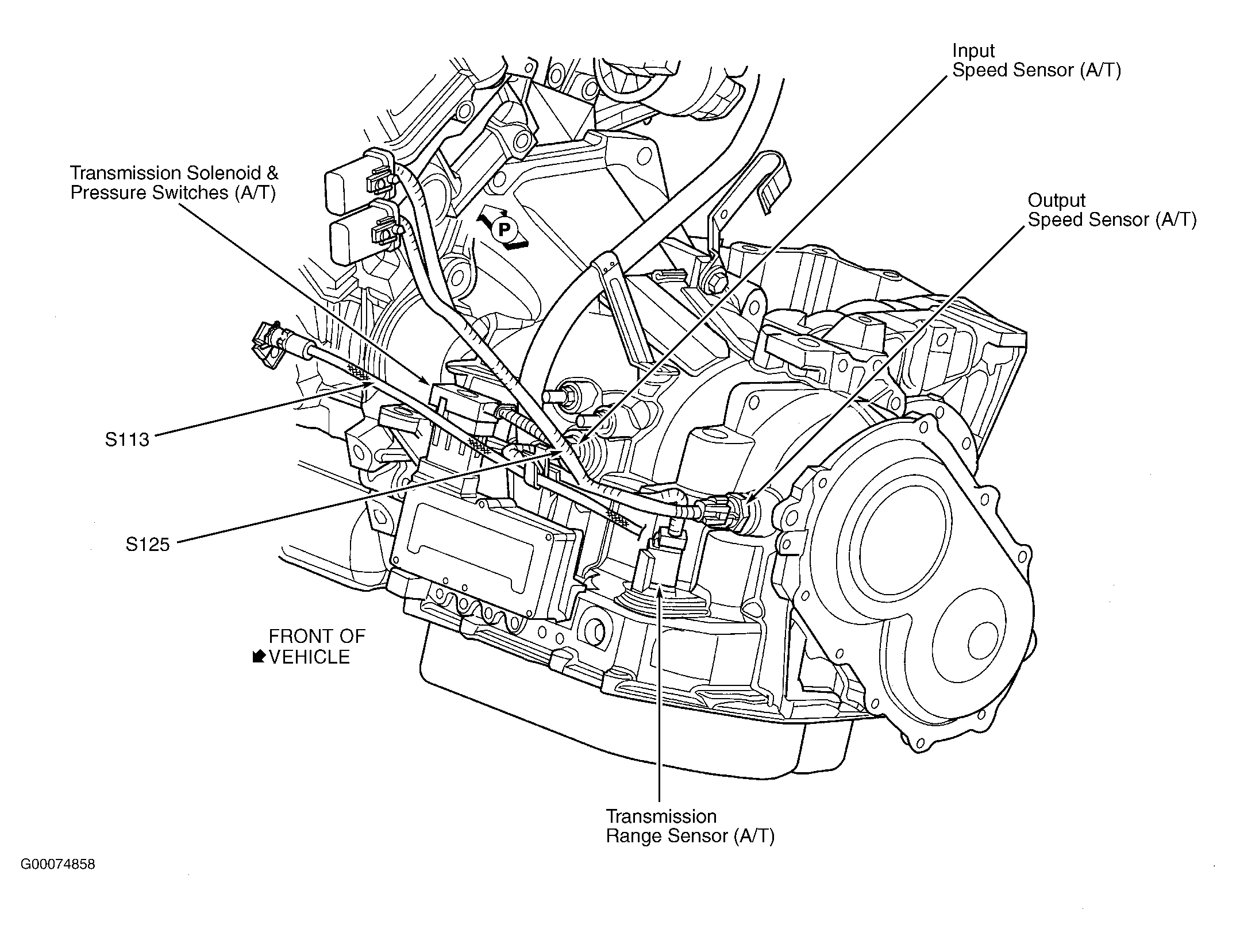

Fig 2: Left Side Of Transaxle

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.
