Power Steering System - Except Coupe: Column: Description

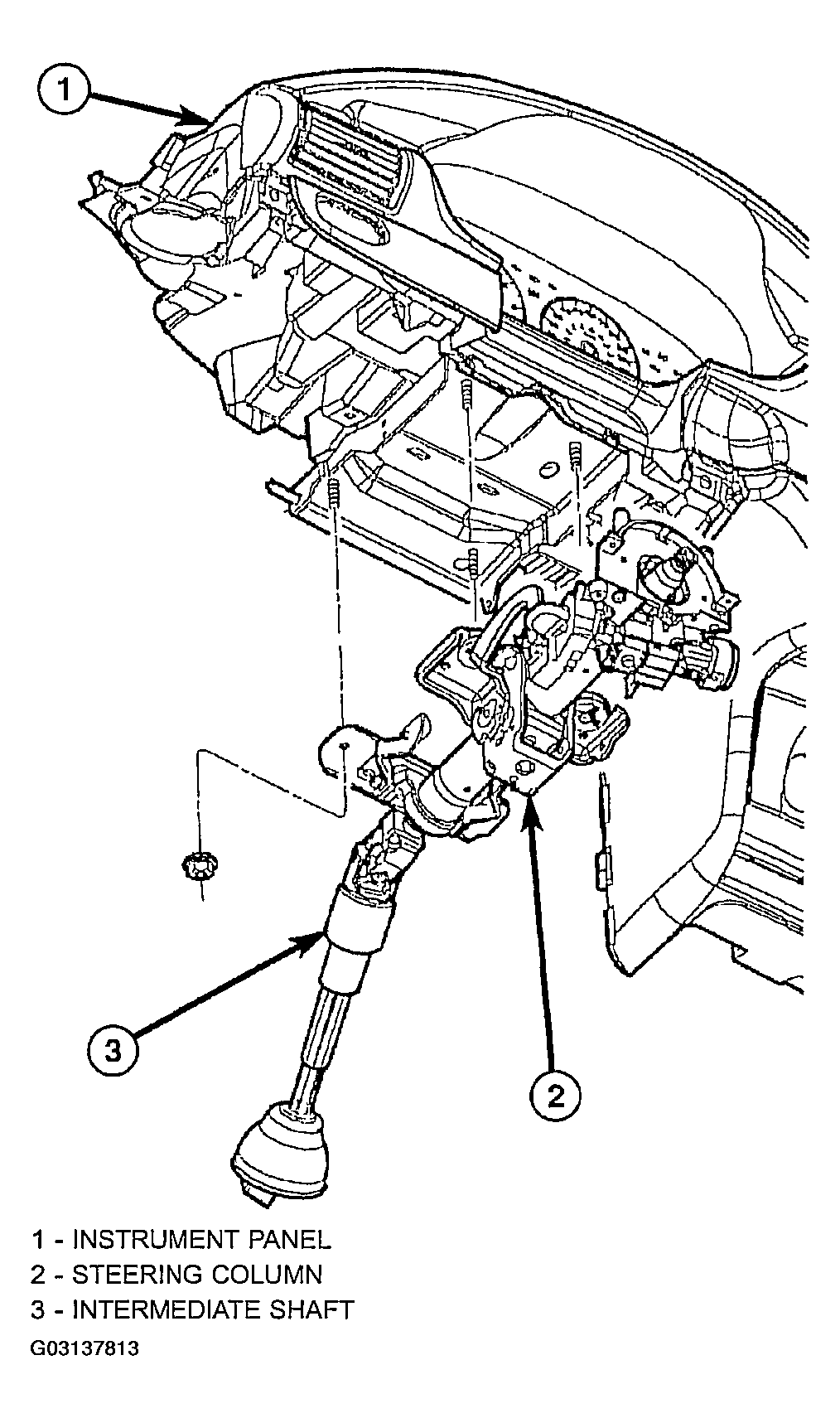

The steering column mounted to the underside of the instrument panel is a tilt type (See Fig 1). It has been designed to be serviced only as an assembly if it is determined to be defective. These replaceable components mounted on the steering column can be serviced without removal of the steering column from the vehicle:
- key cylinder
- lock cylinder trim ring
- ignition switch
- multifunction switch
- clockspring
- SKIM module
- trim shrouds, and
- steering wheel
The steering column intermediate shaft can also be serviced separately from the steering column.
The speed control switches and driver airbag mounted on the steering wheel are also serviced separately.
