Heated Seat Switch

Remove heated seat switch from seat. See HEATED & MEMORY SEAT SWITCHES  under REMOVAL & INSTALLATION. Using DVOM, measure resistance between heated seat switch terminals No. 4 and 6 with switch in appropriate position. See HEATED SEAT SWITCH RESISTANCE  table. See Fig 1 . If readings are not as specified, replace heated seat switch.

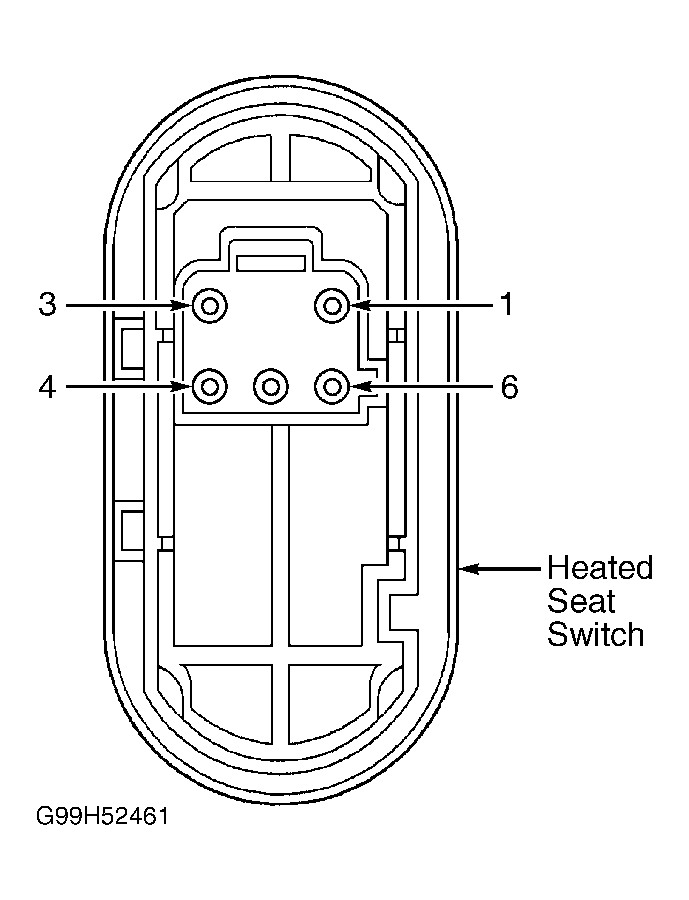

Fig 1: Identifying Heated Seat Switch Terminals

Courtesy of CHRYSLER CORP.
