Airbag Control Module (Orc) Connector End View
Airbag Control Module (Orc) Connector End View

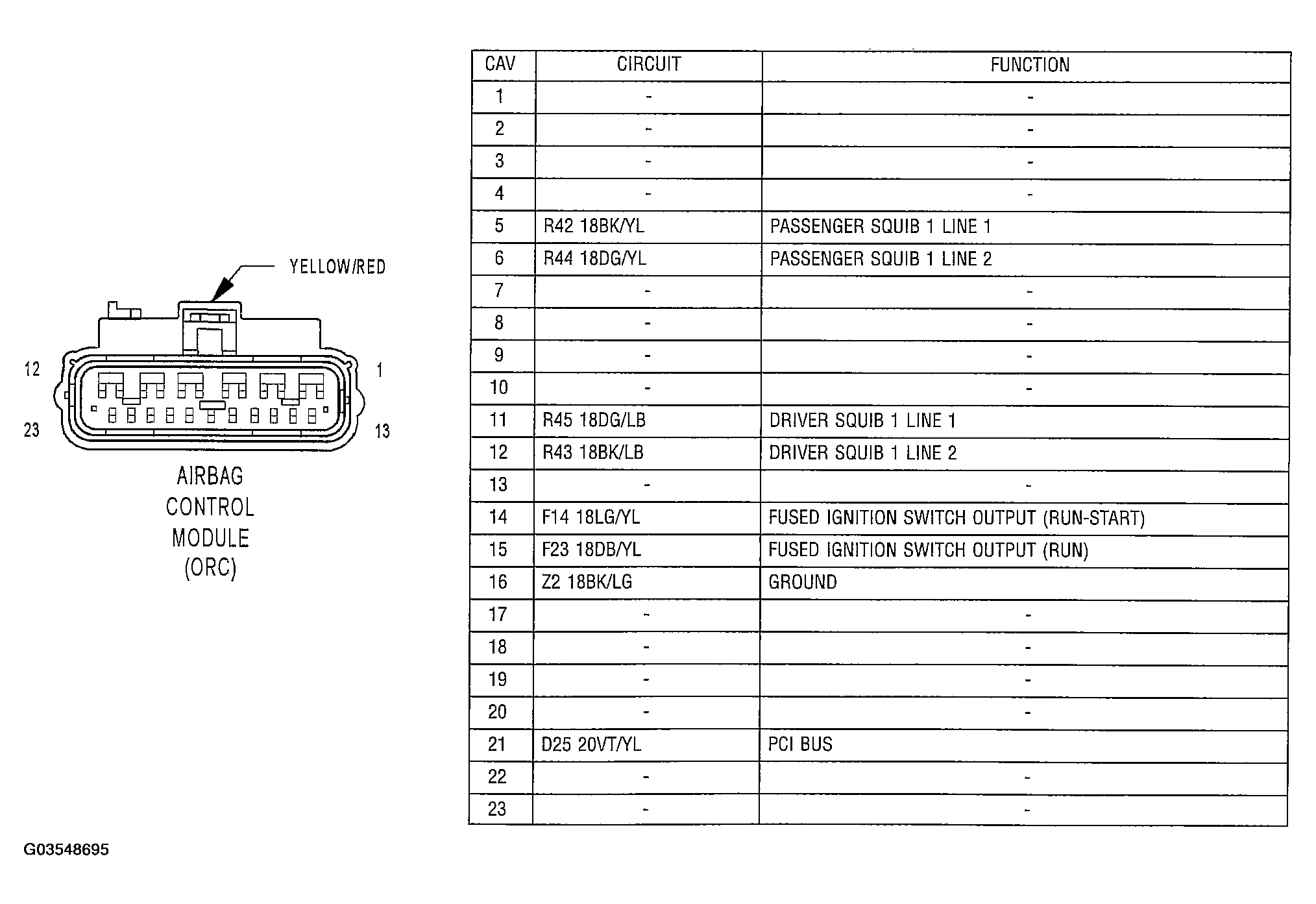

Fig 1: Airbag Control Module (Orc)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
