Automatic Day/Night Mirror (Premium) Connector End View
Automatic Day/Night Mirror (Premium) Connector End View

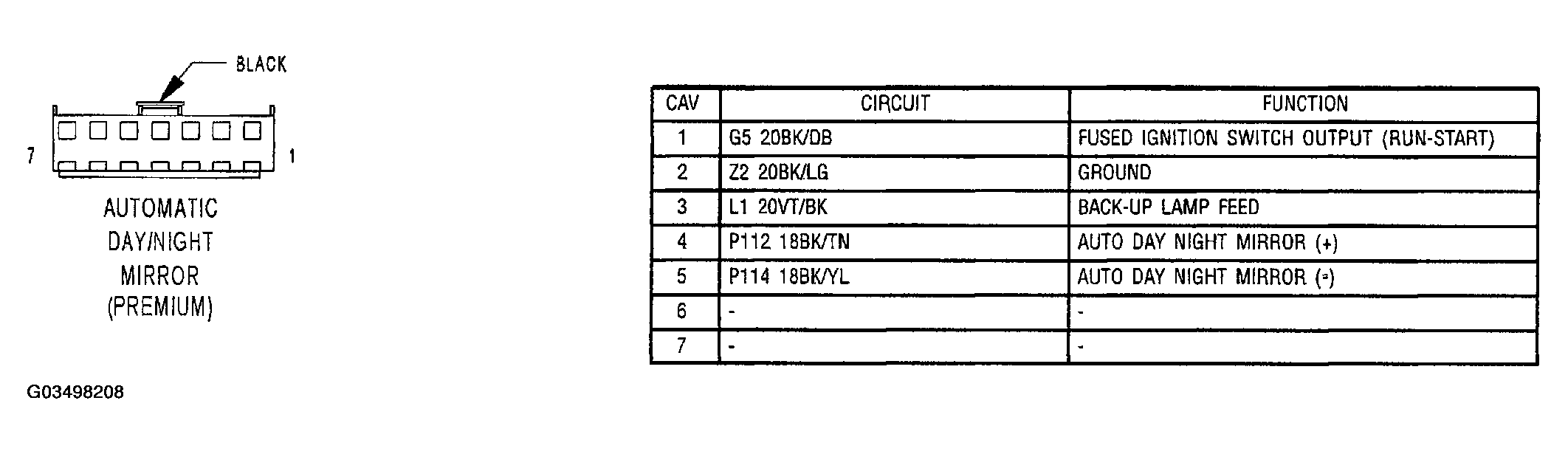

Fig 1: Automatic Day/Night Mirror (Premium) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
