Automatic Temperature Control Head Connector End View

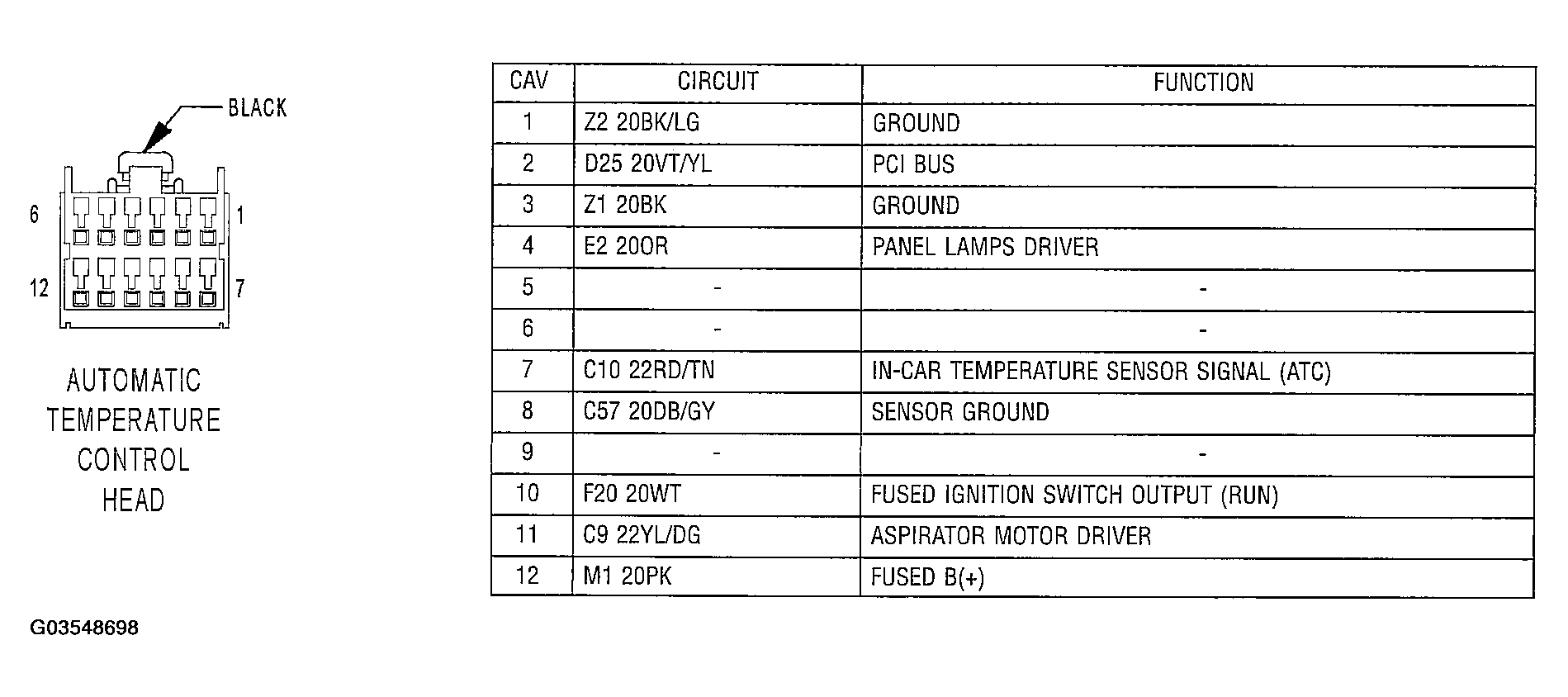

Fig 1: Automatic Temperature Control Head
G03548698Courtesy of CHRYSLER GROUP, LLC
