Body Control Module C4 Connector End View
Body Control Module C4 Connector End View

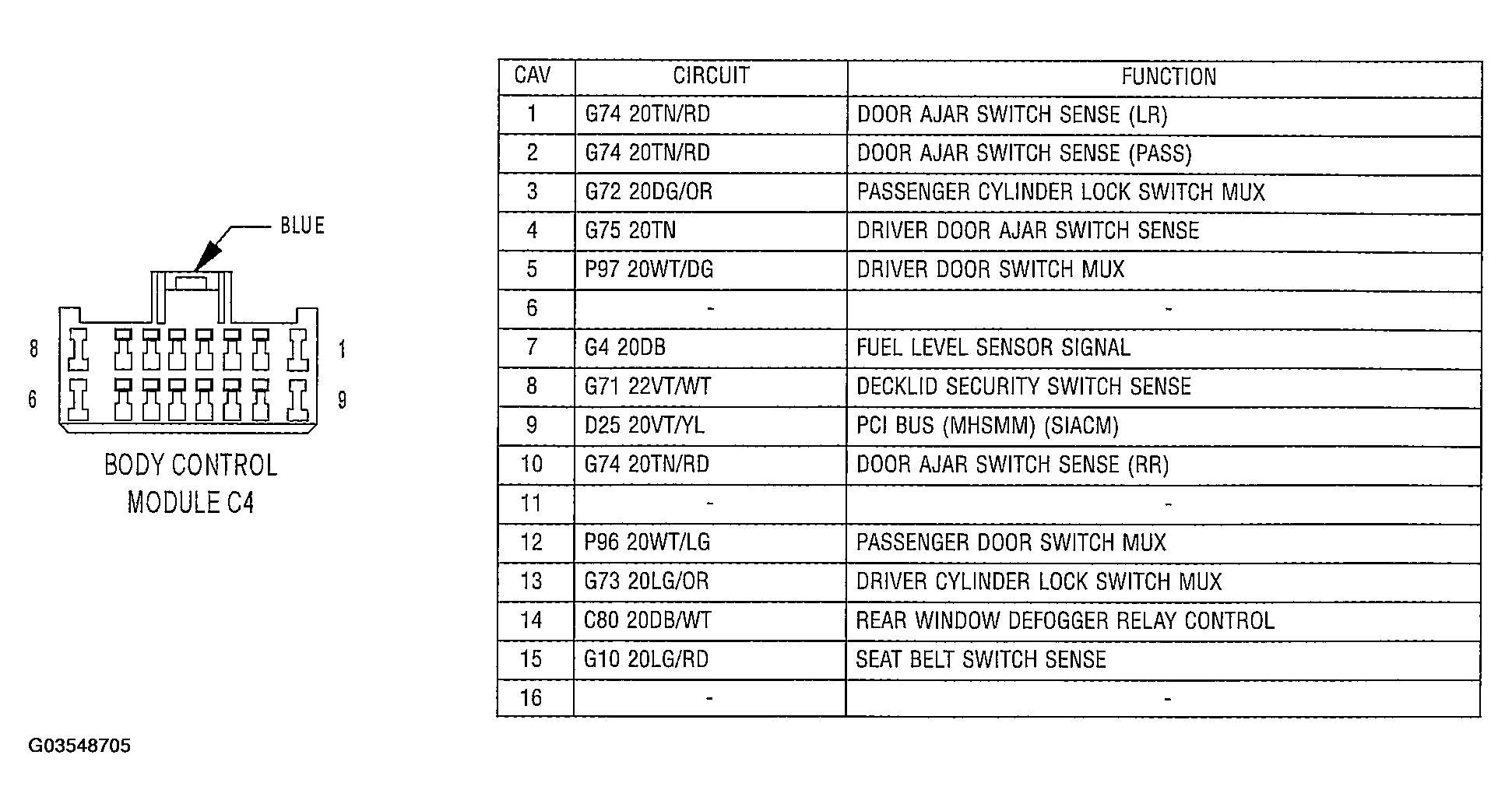

Fig 1: Body Control Module C4
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
