Body Side Inline Connector End View (C200)

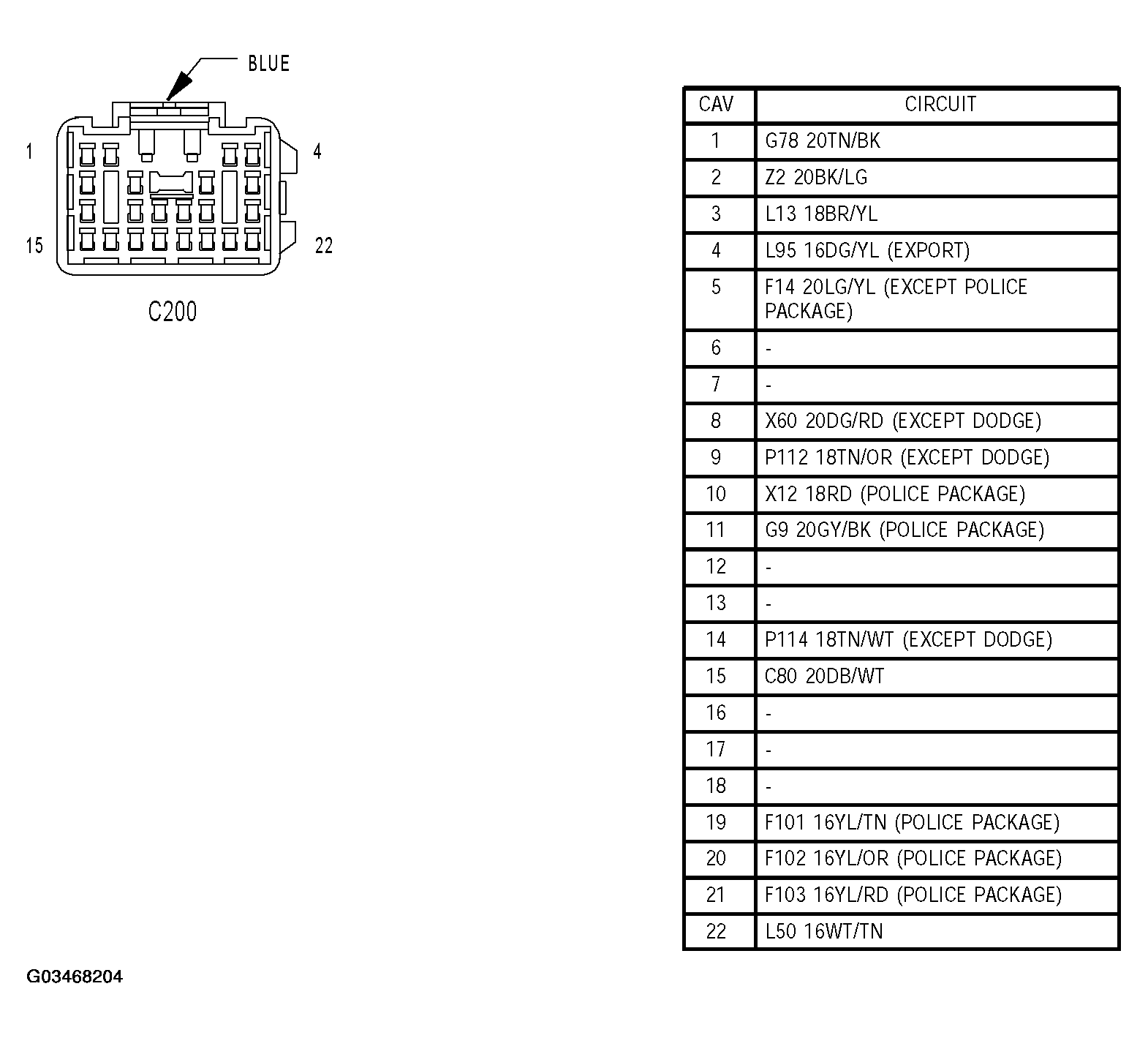

Fig 1: Body Side Inline Connector End View (C200)
G03468204Courtesy of CHRYSLER GROUP, LLC
