Body Side Inline Connector End View (C300)

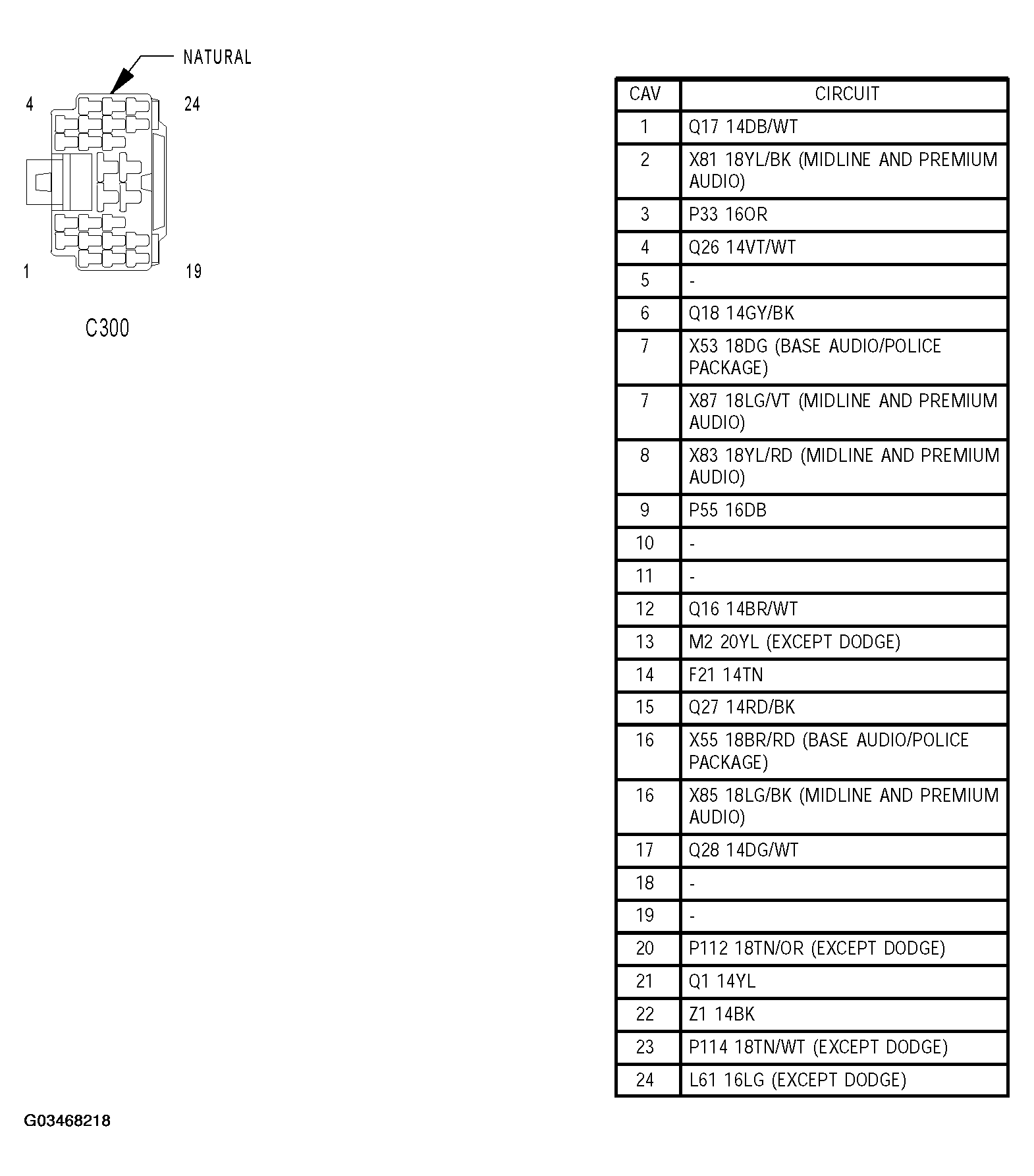

Fig 1: Body Side Inline Connector End View (C300)
G03468218Courtesy of CHRYSLER GROUP, LLC
