Home › Chrysler › 2002 › Intrepid Base › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Body Side Inline Connector End View (C302)

Body Side Inline Connector End View (C302)

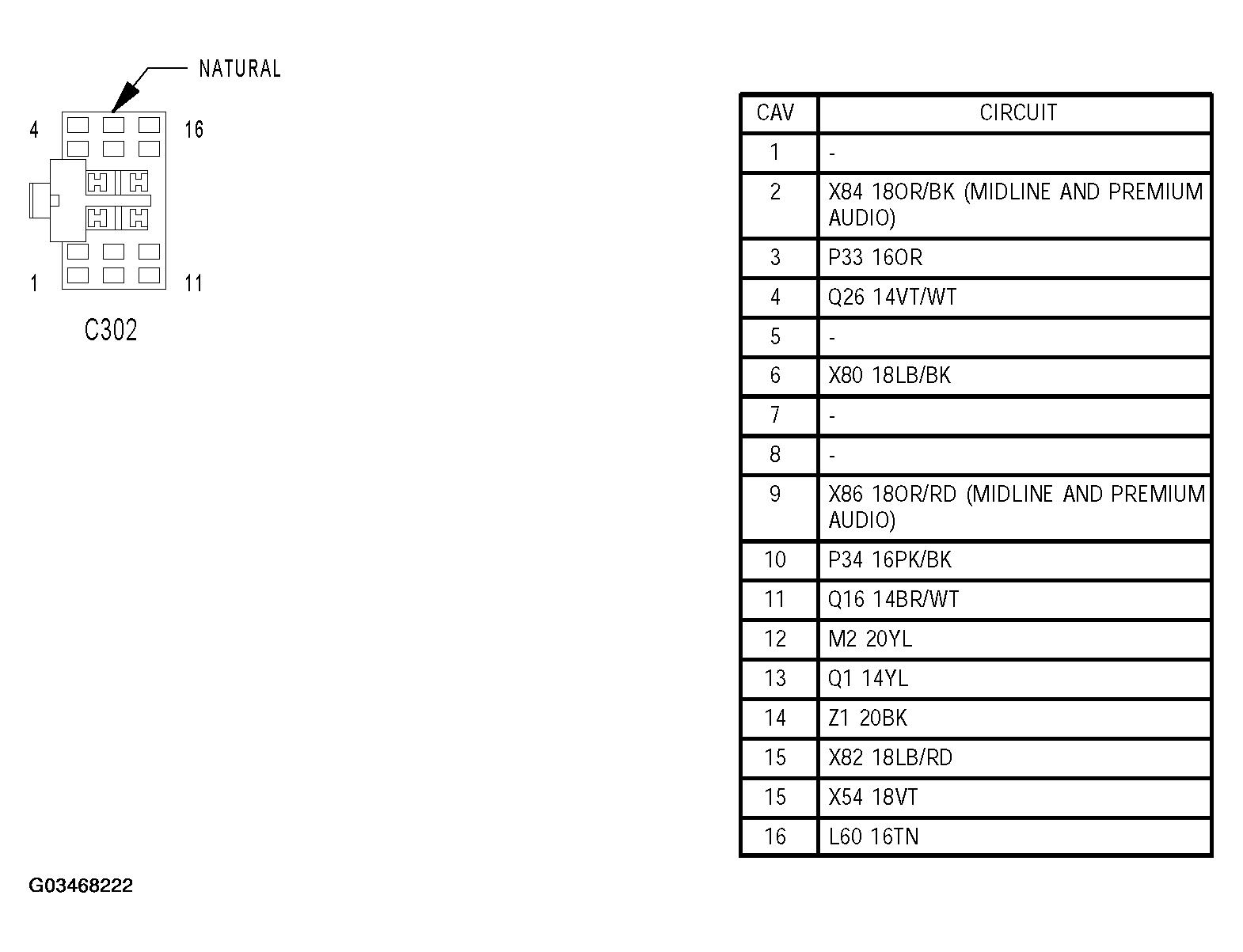

Fig 1: Body Side Inline Connector End View (C302)
G03468222Courtesy of CHRYSLER GROUP, LLC
