Body Side Inline Connector End View (C304)

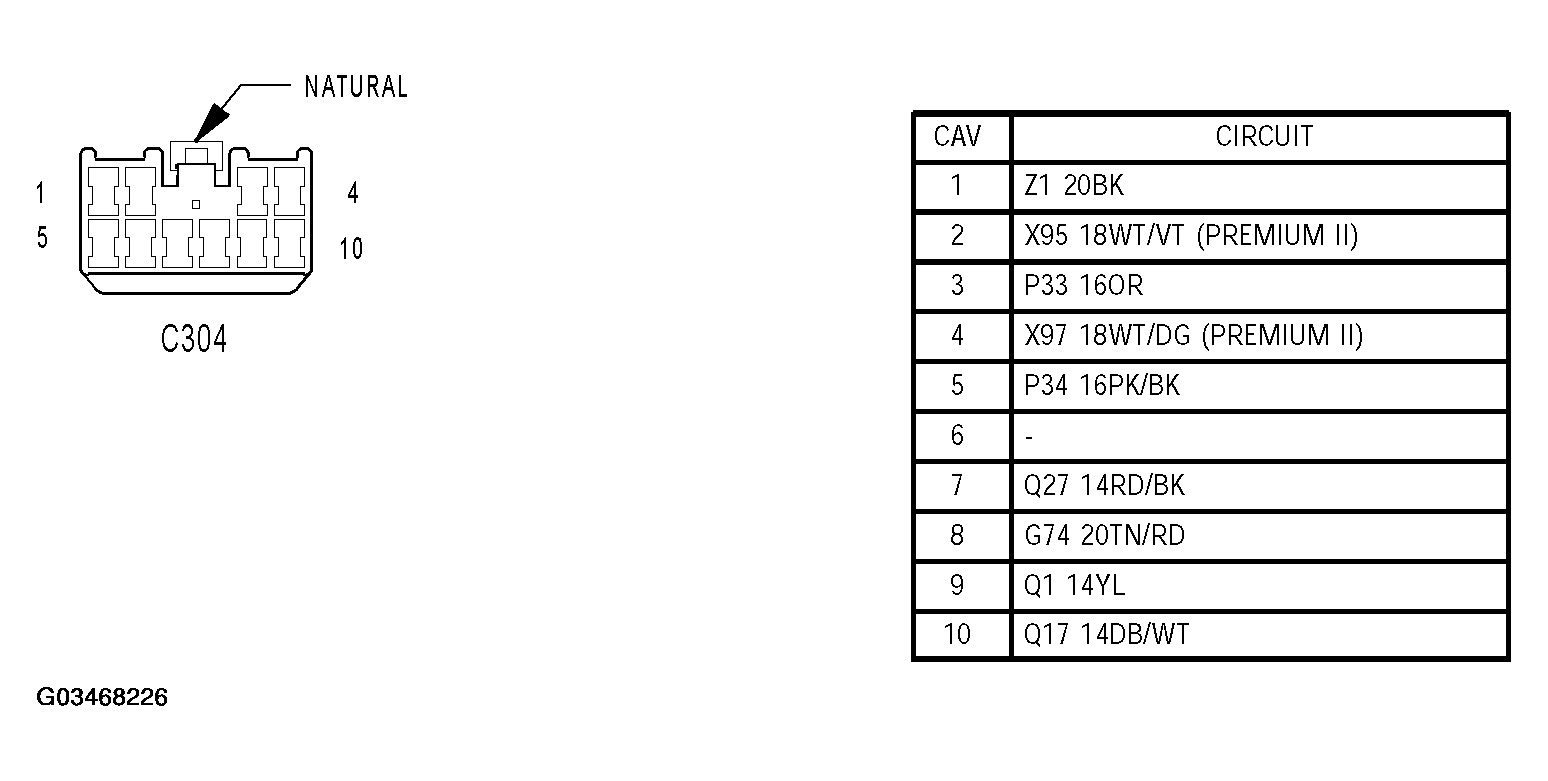

Fig 1: Body Side Inline Connector End View (C304)
G03468226Courtesy of CHRYSLER GROUP, LLC
