Home › Chrysler › 2002 › Intrepid Base › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › CD Changer Radio Connector End View (C2)

CD Changer Radio Connector End View (C2)

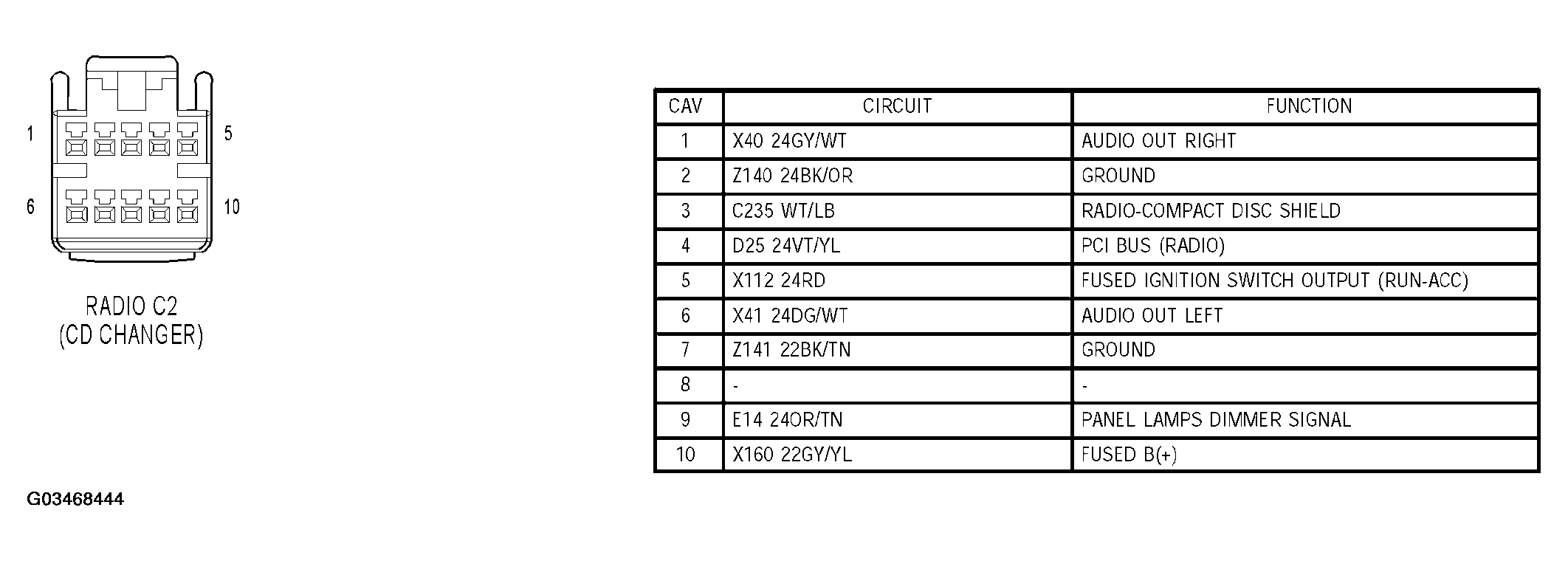

Fig 1: CD Changer Radio Connector End View (C2)
G03468444Courtesy of CHRYSLER GROUP, LLC
