Cigar Lighter Connector End View

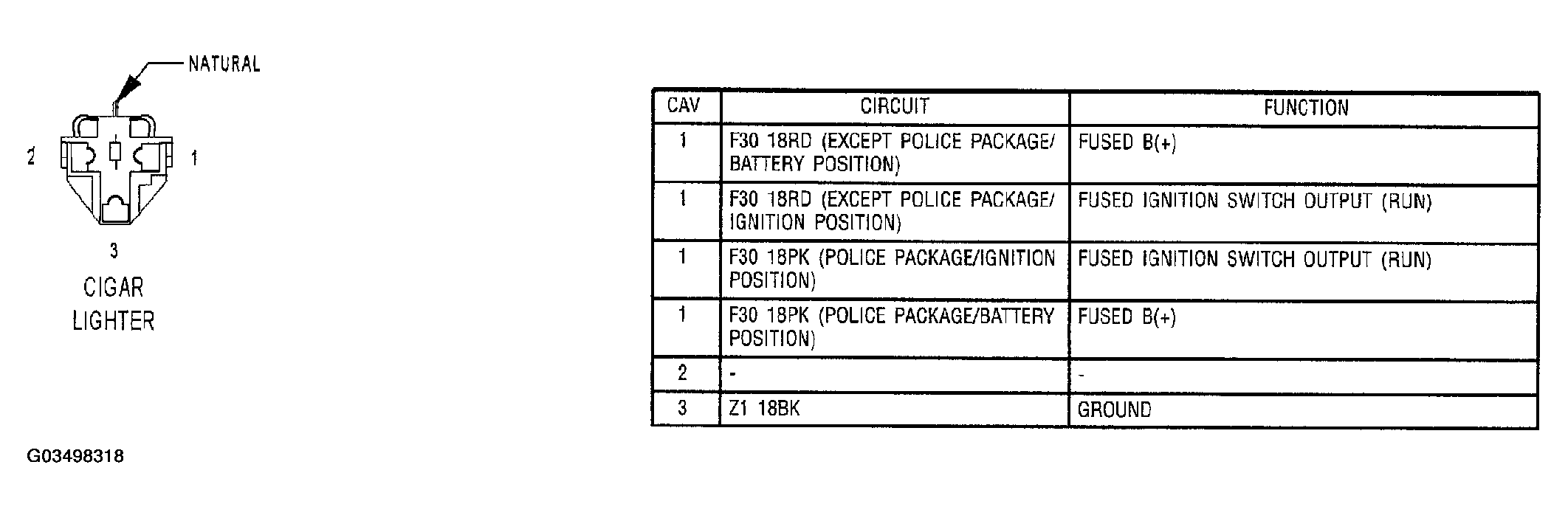

Fig 1: Cigar Lighter Connector End View
G03498318Courtesy of CHRYSLER GROUP, LLC
