Combination Flasher Connector End View

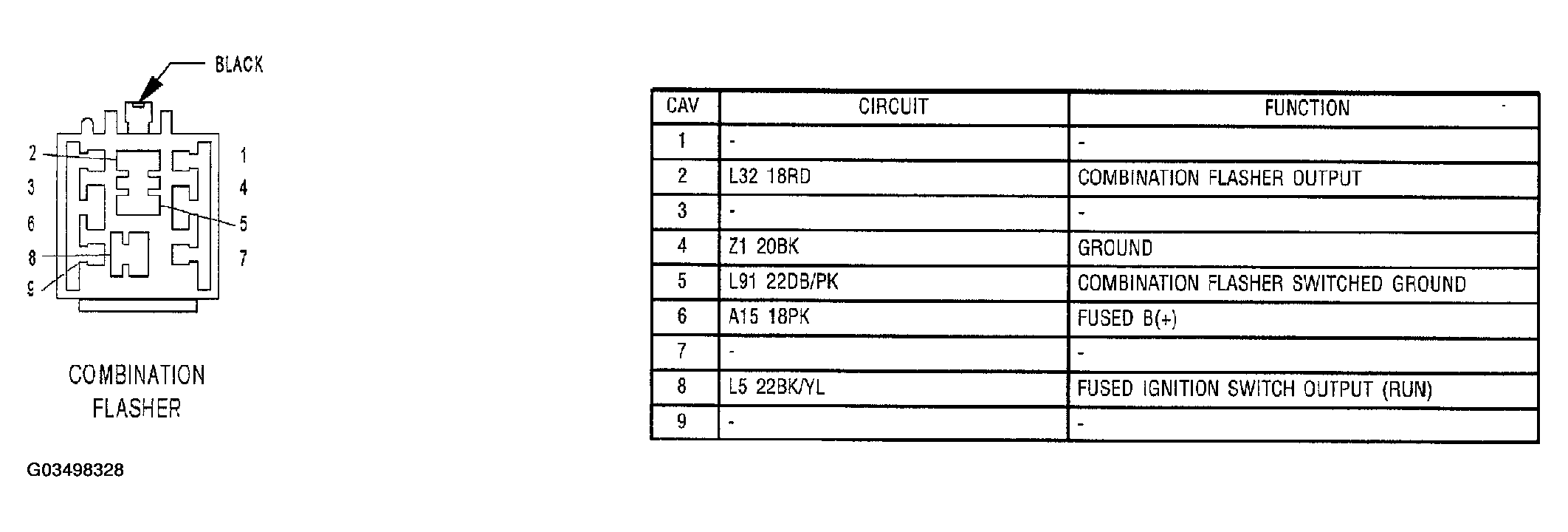

Fig 1: Combination Flasher Connector End View
G03498328Courtesy of CHRYSLER GROUP, LLC
