Driver Power Mirror (Except Memory) Connector End View
Driver Power Mirror (Except Memory) Connector End View

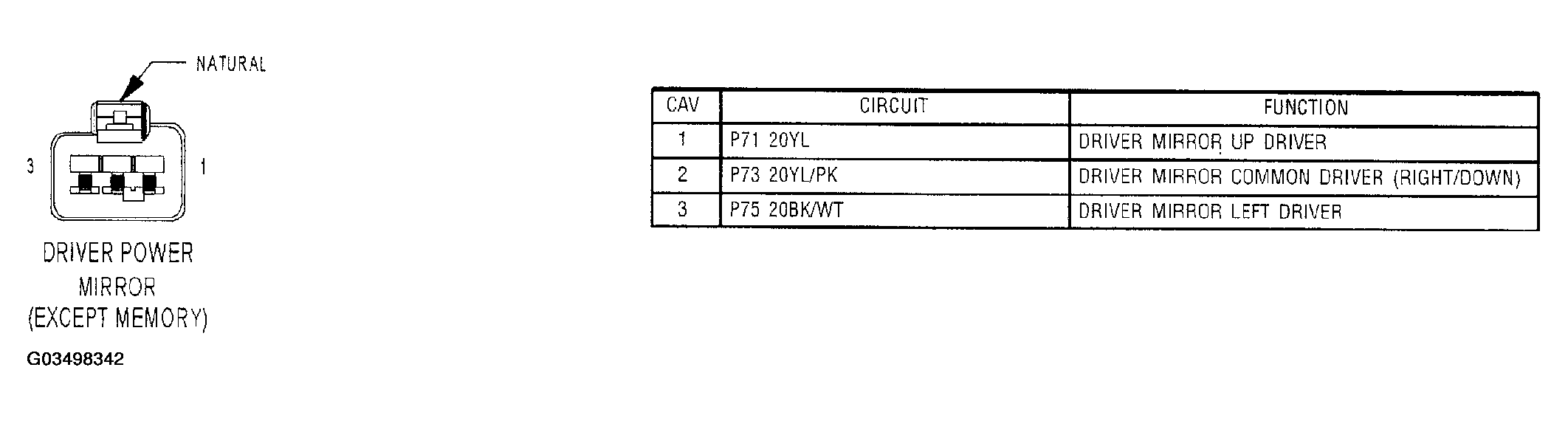

Fig 1: Driver Power Mirror (Except Memory) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
