Horn Connector Connector End View

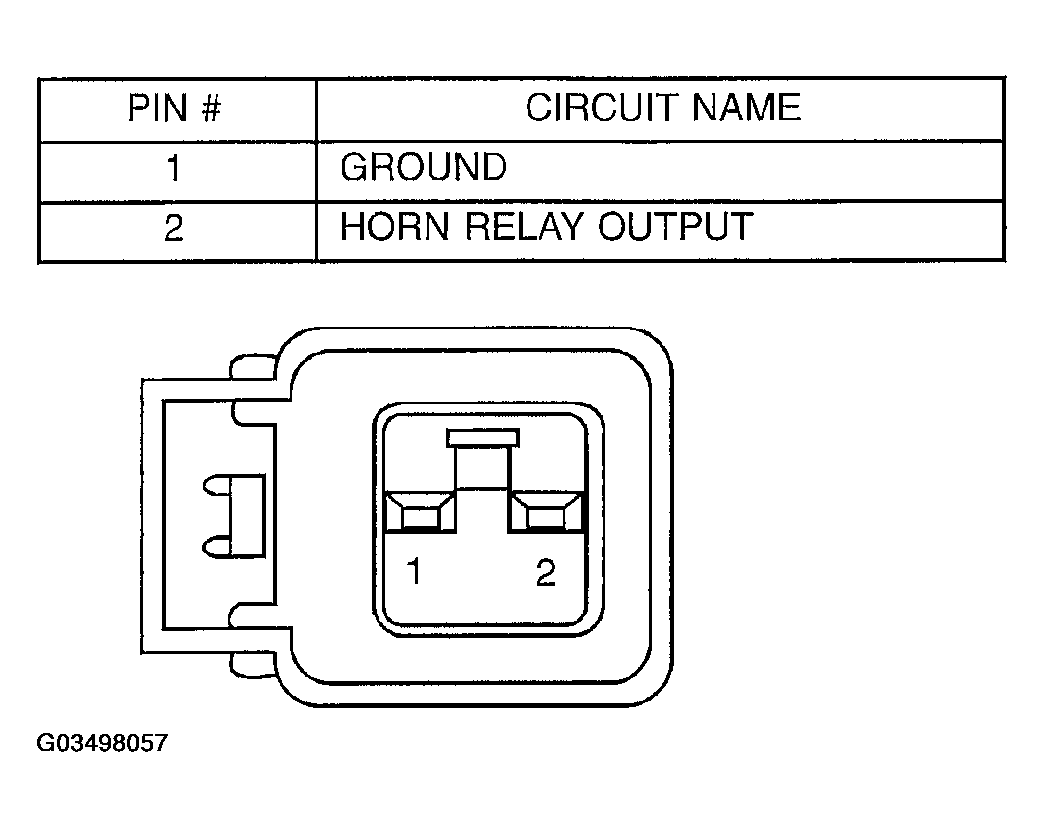

Fig 1: Horn Connector Connector End View
G03498057Courtesy of CHRYSLER GROUP, LLC
