In-Line Connector End View C203

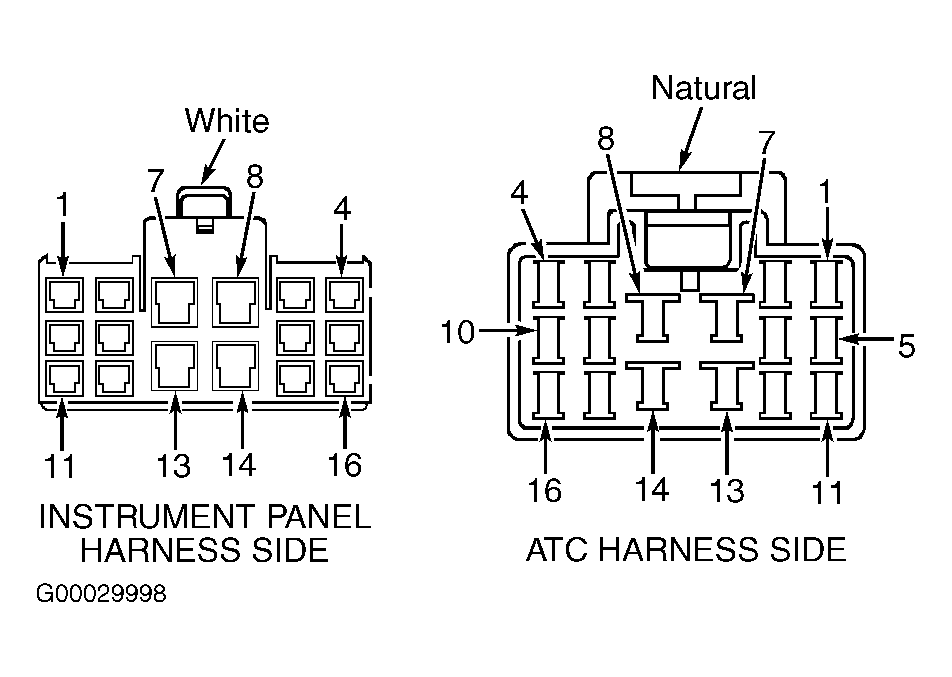

Fig 1: In-Line Connector End View C203
G00029998Courtesy of CHRYSLER GROUP, LLC
