Instrument Panel Side Inline Connector End View (C103)

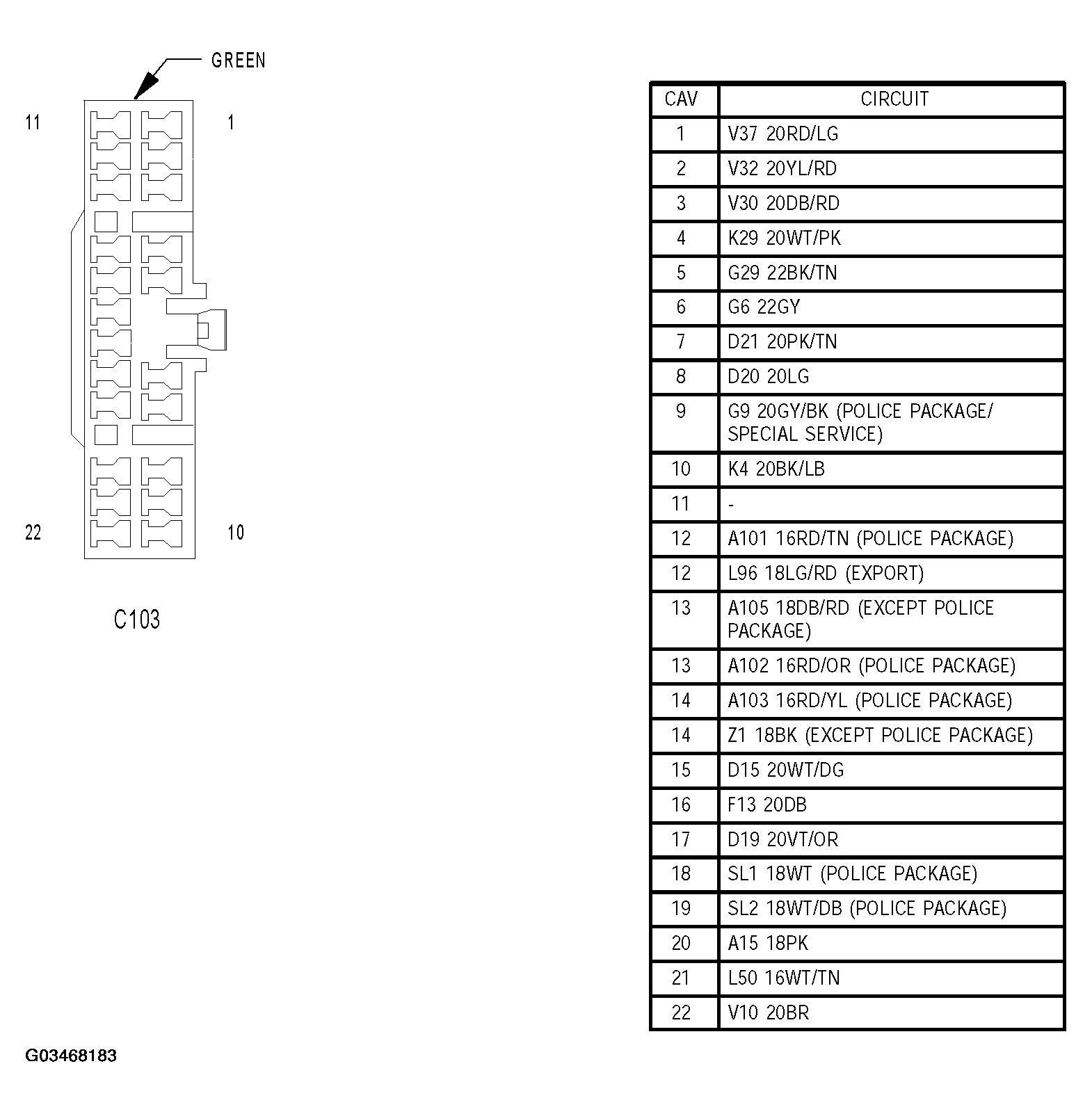

Fig 1: Instrument Panel Side Inline Connector End View (C103)
G03468183Courtesy of CHRYSLER GROUP, LLC
