Instrument Panel Side Inline Connector End View (C200)

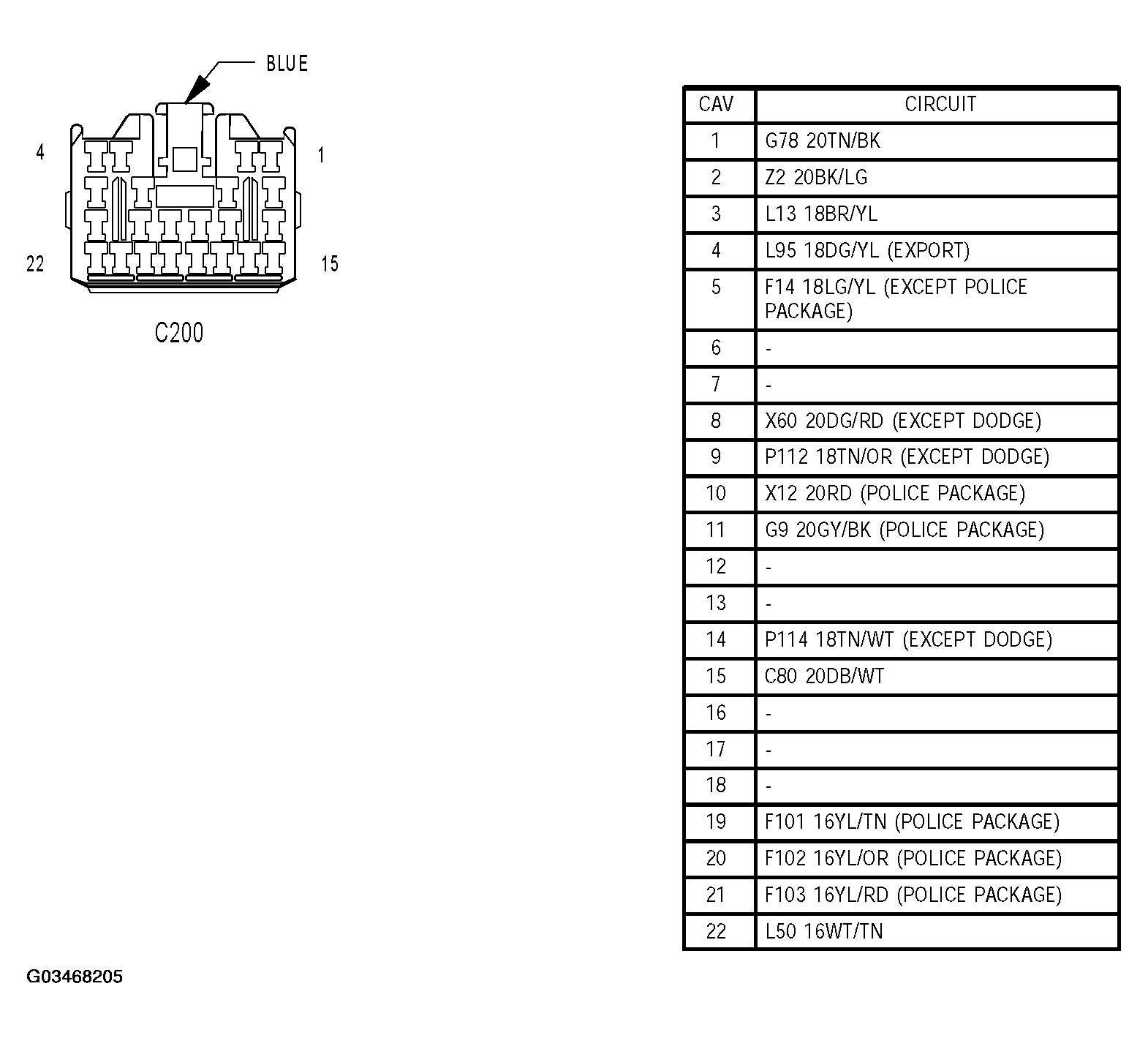

Fig 1: Instrument Panel Side Inline Connector End View (C200)
G03468205Courtesy of CHRYSLER GROUP, LLC
