Junction Block Body Control Module-Jb Connector End View

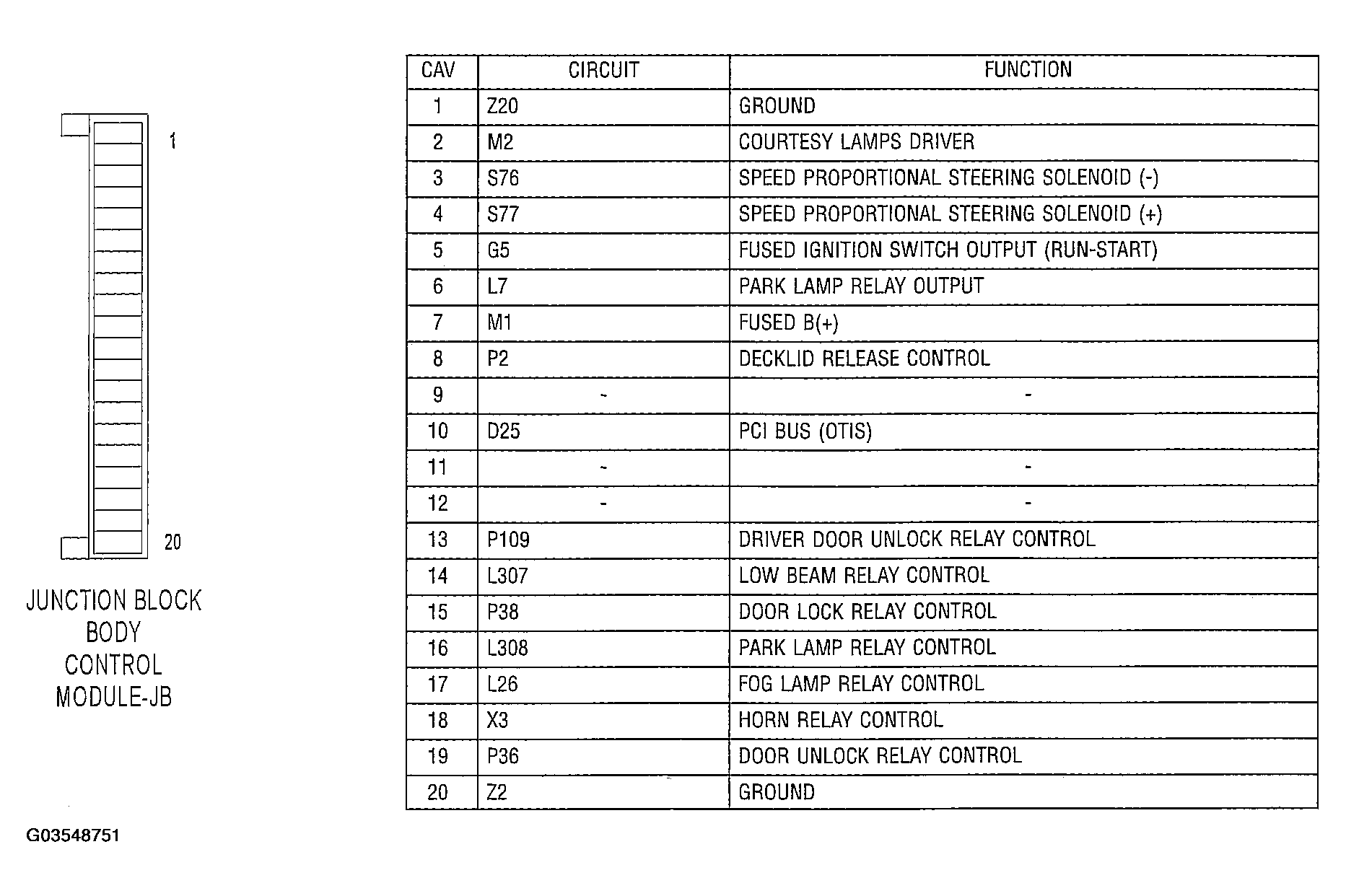

Fig 1: Junction Block Body Control Module-Jb
G03548751Courtesy of CHRYSLER GROUP, LLC
