Junction Block C2 Connector End View
Junction Block C2 Connector End View

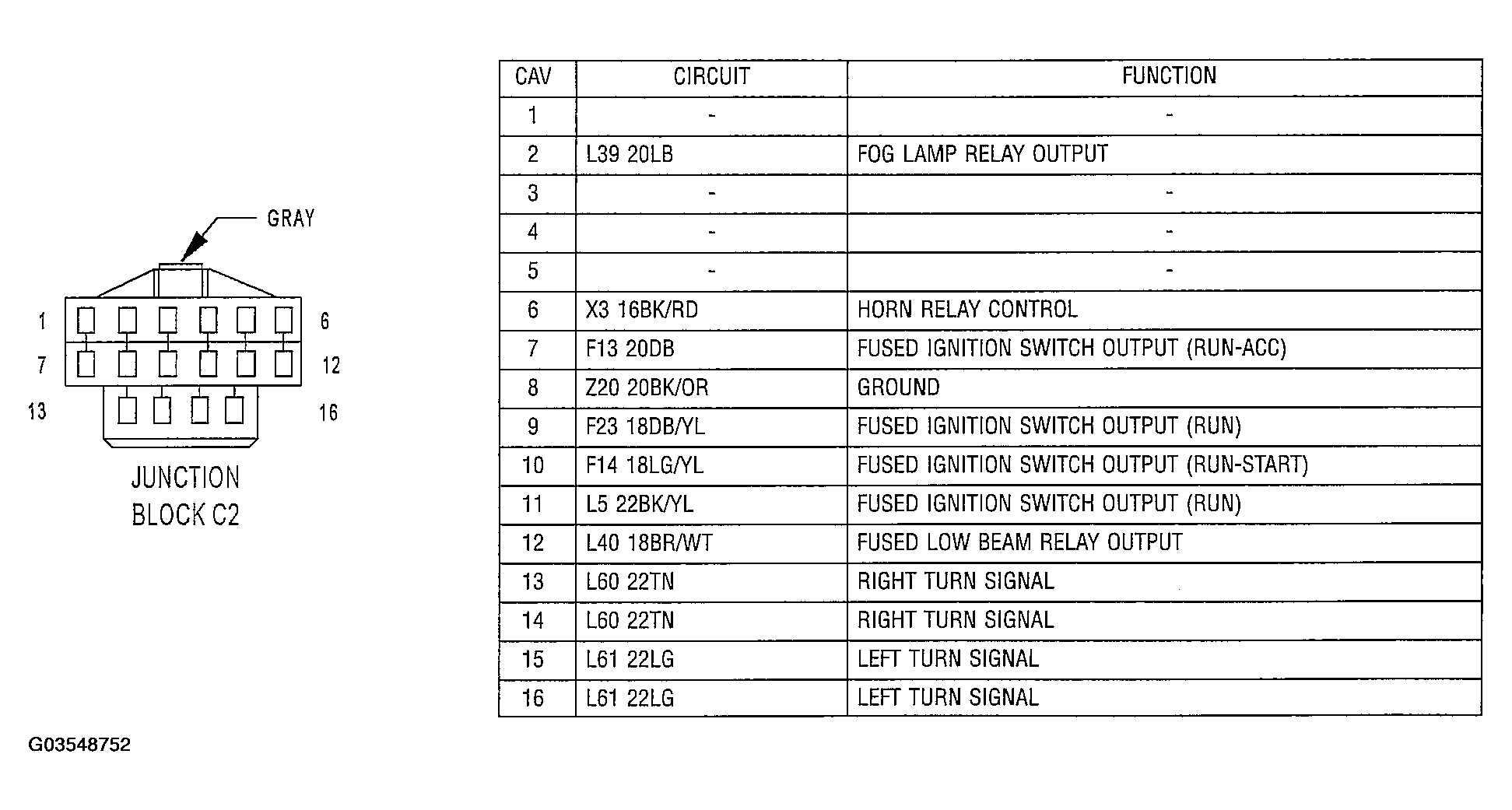

Fig 1: Junction Block C2
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
