Junction Block Connector End View (C1)

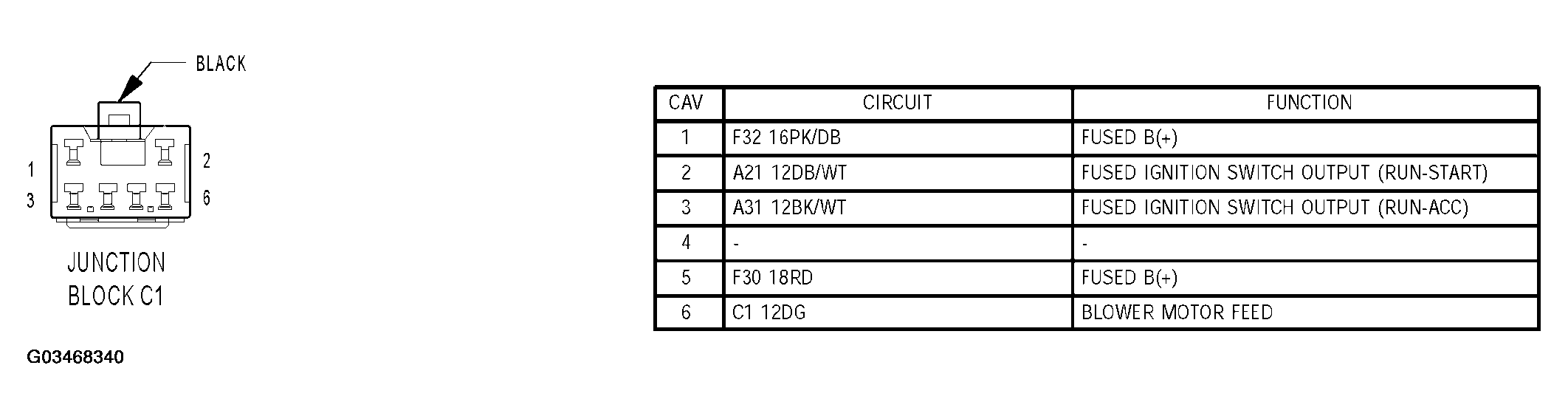

Fig 1: Junction Block Connector End View (C1)
G03468340Courtesy of CHRYSLER GROUP, LLC
