Junction Block Connector End View (C10)
Junction Block Connector End View (C10)

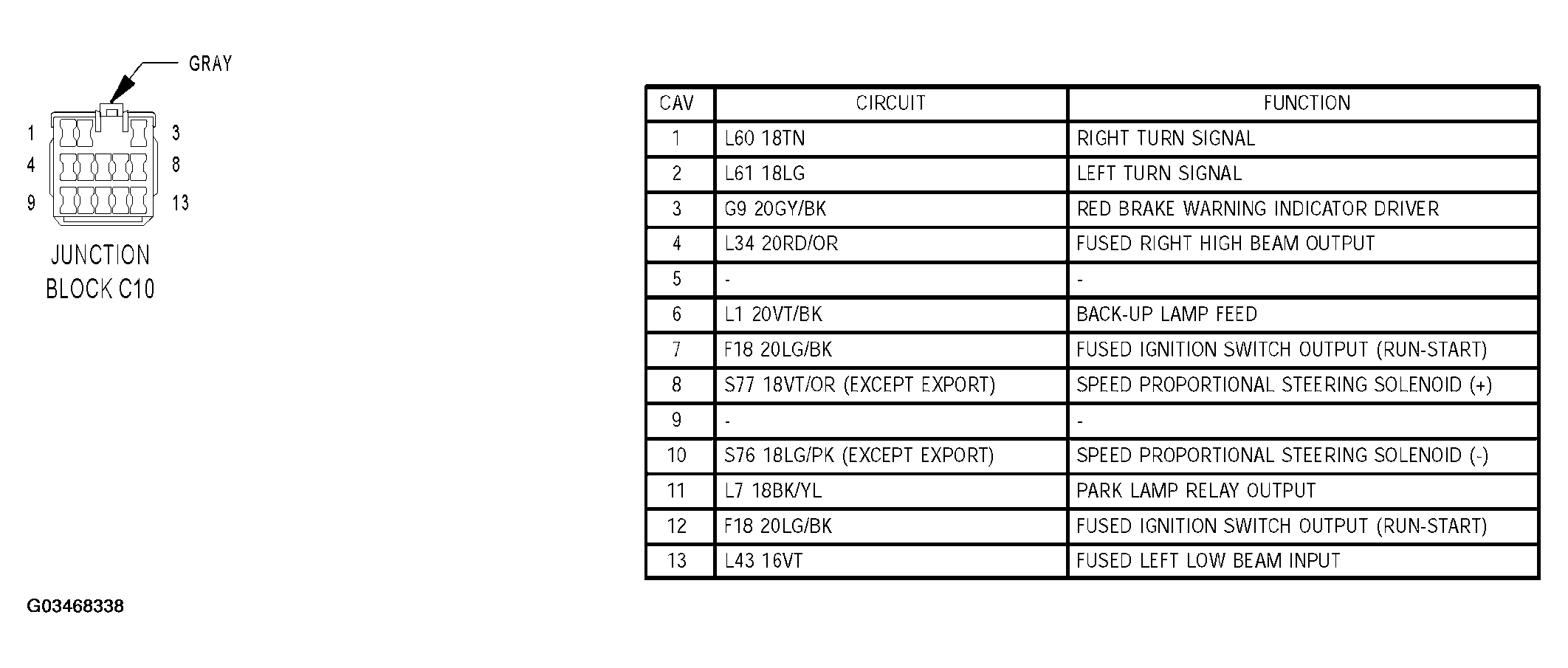

Fig 1: Junction Block Connector End View (C10)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
