Junction Block Connector End View (C11)

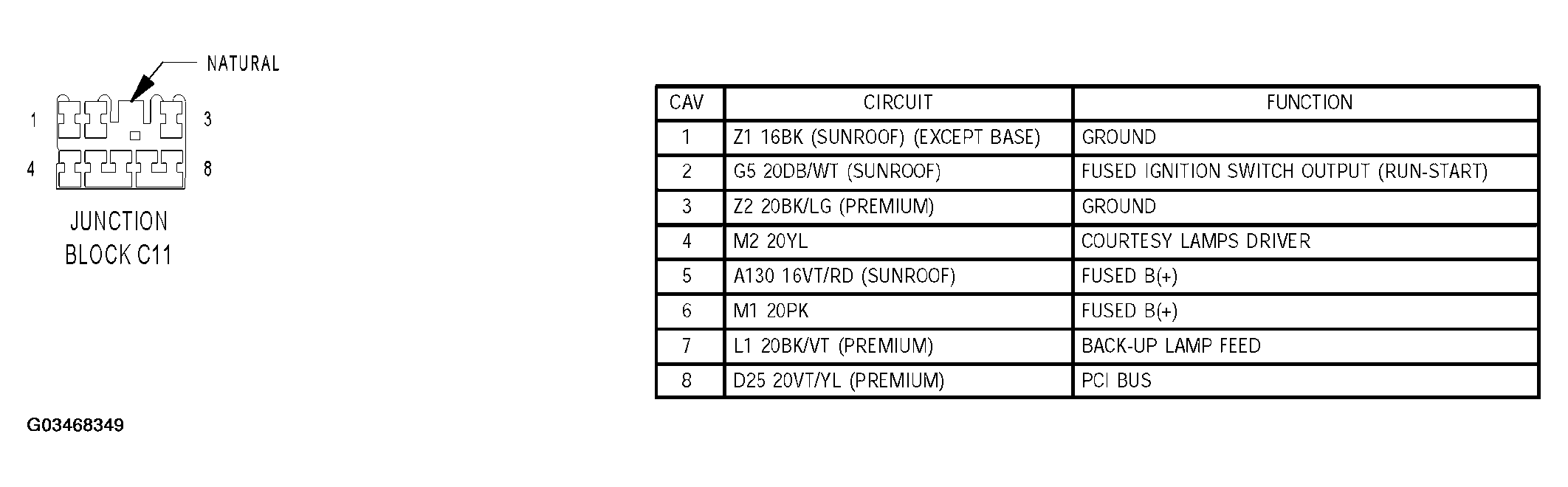

Fig 1: Junction Block Connector End View (C11)
G03468349Courtesy of CHRYSLER GROUP, LLC
