Junction Block Connector End View (C2)

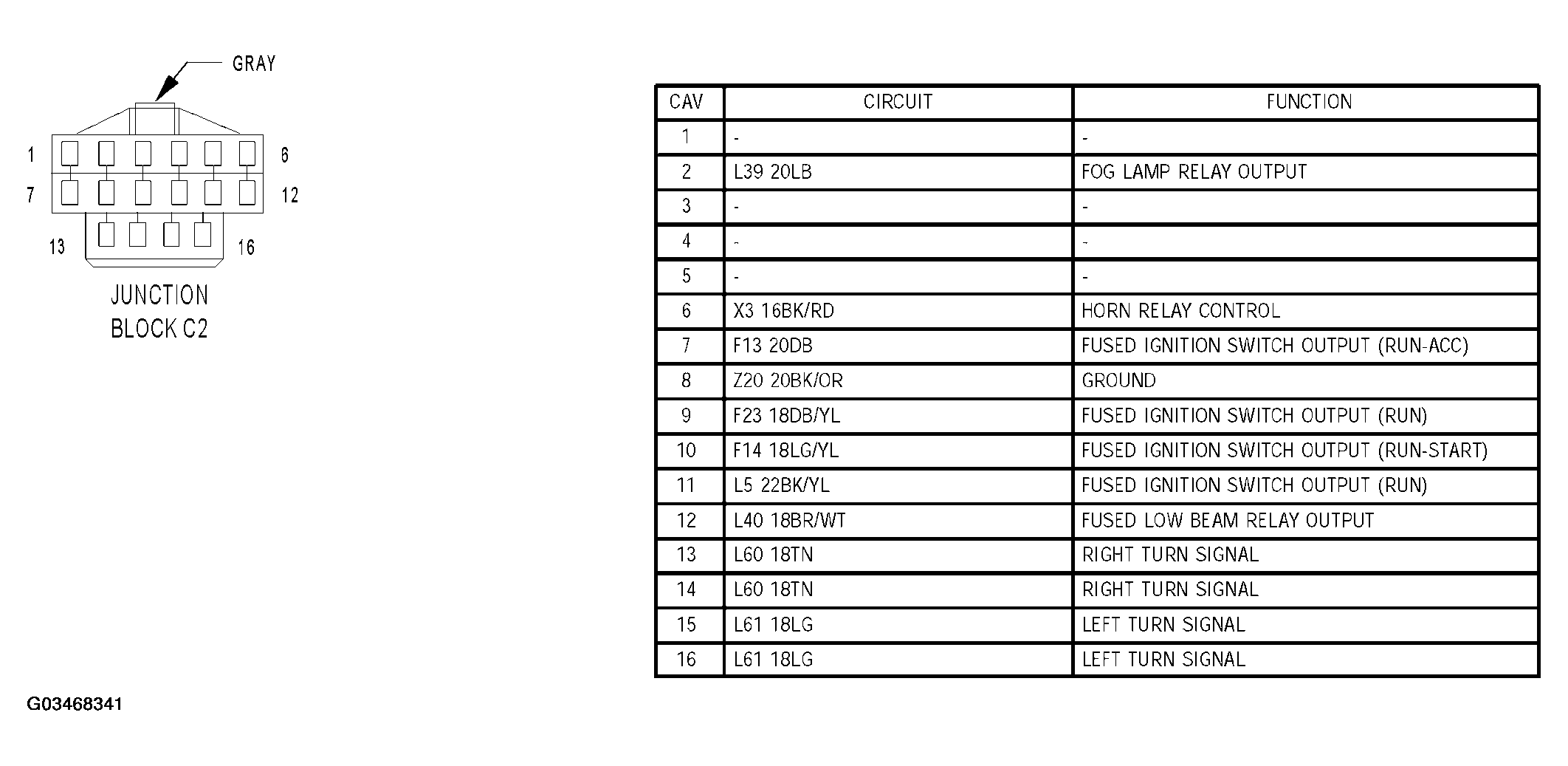

Fig 1: Junction Block Connector End View (C2)
G03468341Courtesy of CHRYSLER GROUP, LLC
