Junction Block Connector End View (C4)

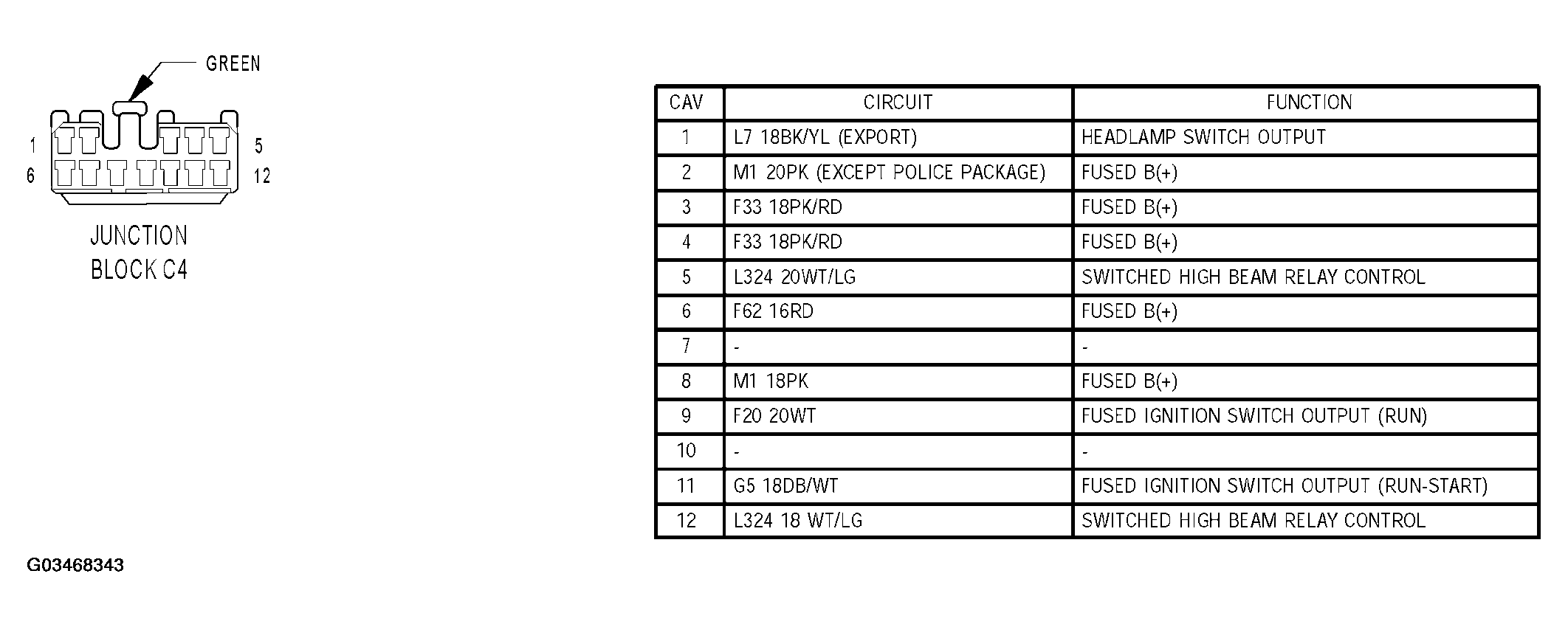

Fig 1: Junction Block Connector End View (C4)
G03468343Courtesy of CHRYSLER GROUP, LLC
