Junction Block Connector End View (C6)

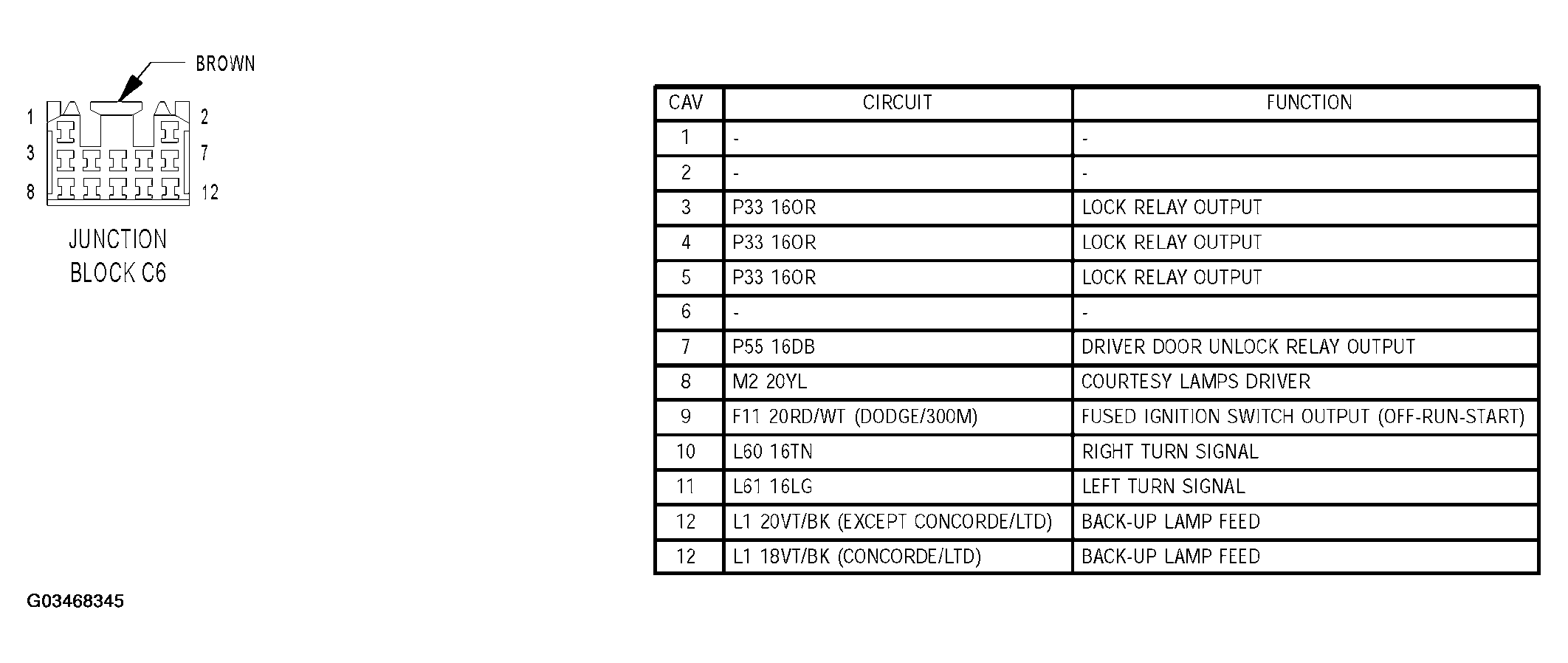

Fig 1: Junction Block Connector End View (C6)
G03468345Courtesy of CHRYSLER GROUP, LLC
