Junction Block Connector End View (C7)
Junction Block Connector End View (C7)

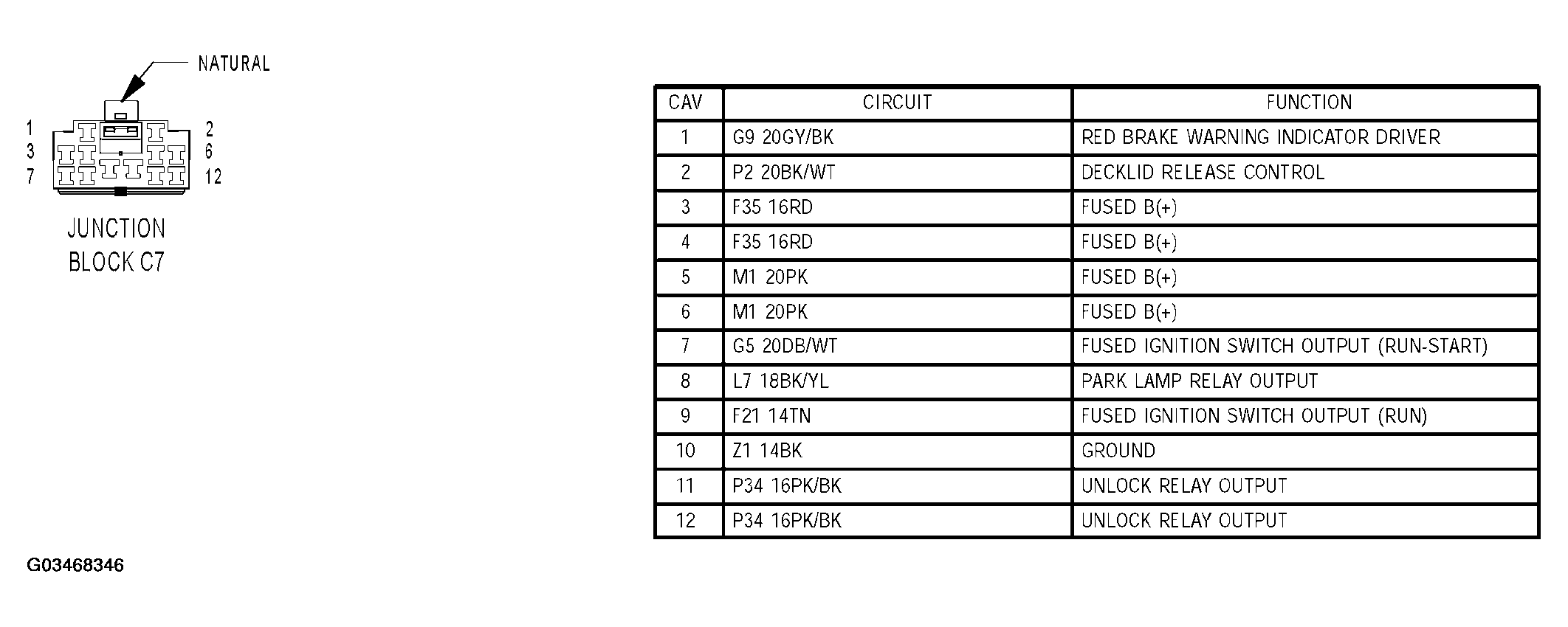

Fig 1: Junction Block Connector End View (C7)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
