Junction Block Connector End View (C8)

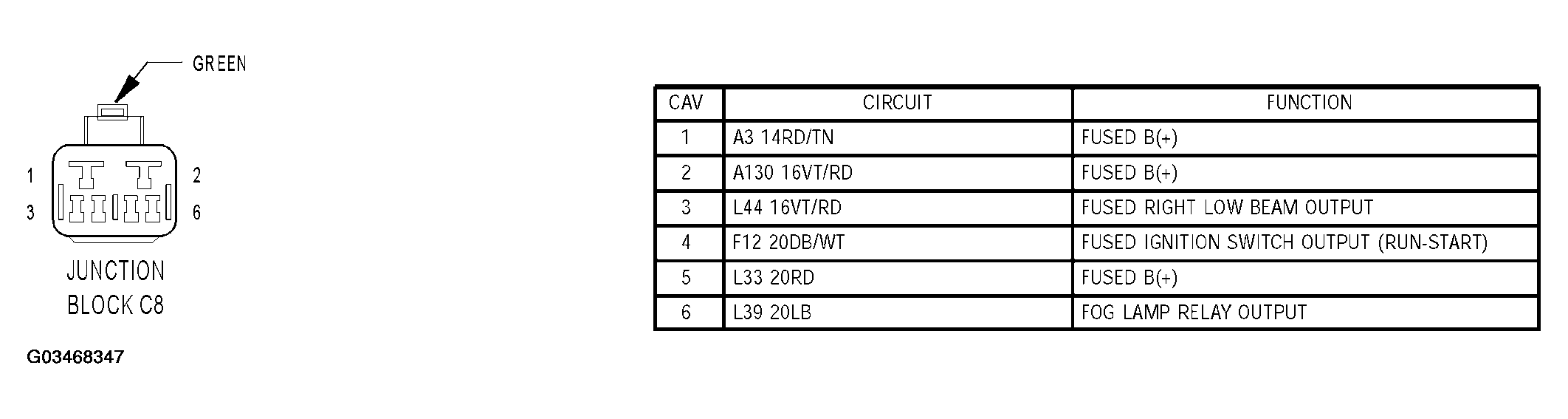

Fig 1: Junction Block Connector End View (C8)
G03468347Courtesy of CHRYSLER GROUP, LLC
