Junction Block Connector End View (C9)

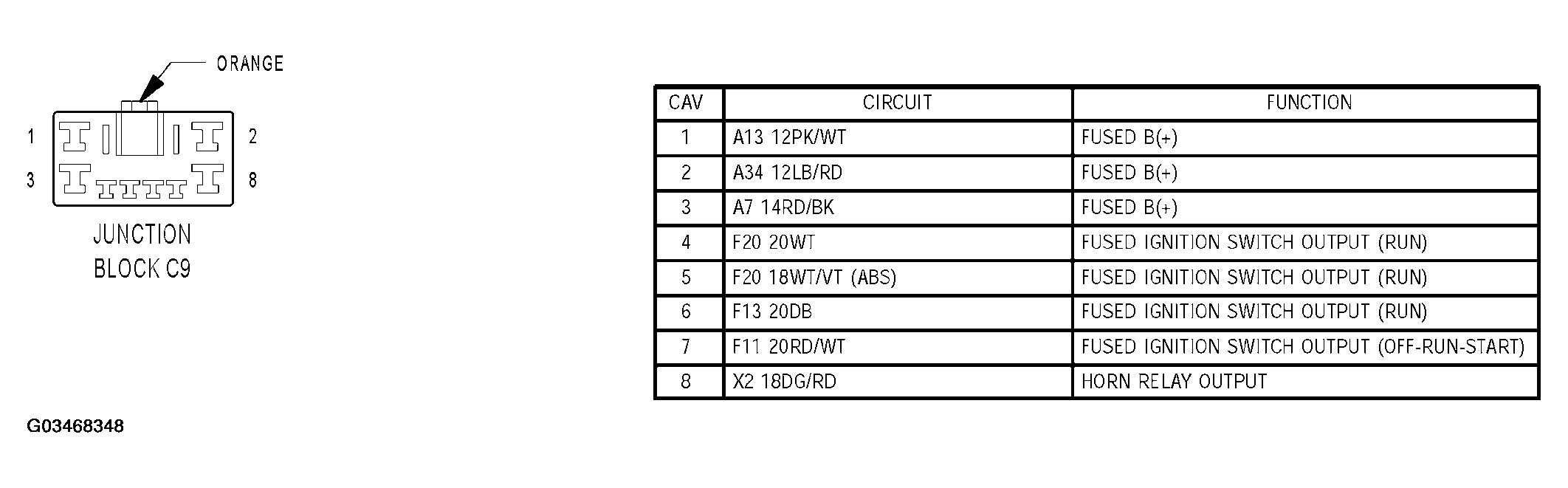

Fig 1: Junction Block Connector End View (C9)
G03468348Courtesy of CHRYSLER GROUP, LLC
