Left Front Wheel Speed Sensor Connector End View

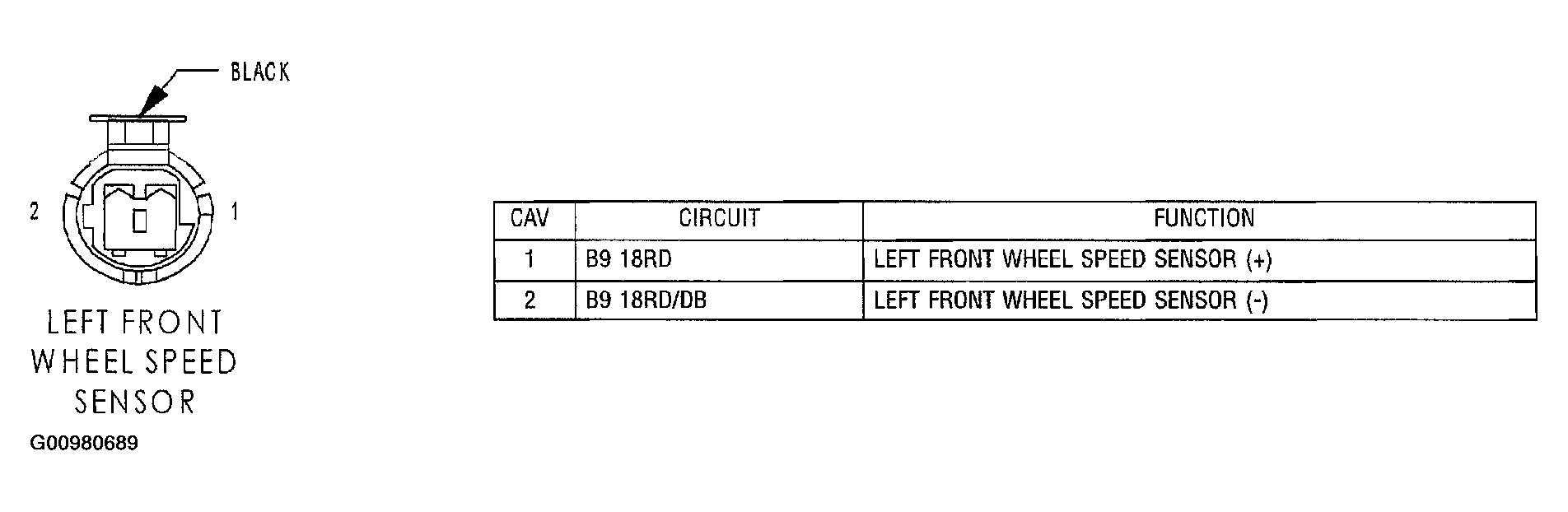

Fig 1: Left Front Wheel Speed Sensor
G00980689Courtesy of CHRYSLER GROUP, LLC
