Left High Beam Headlamp Connector End View

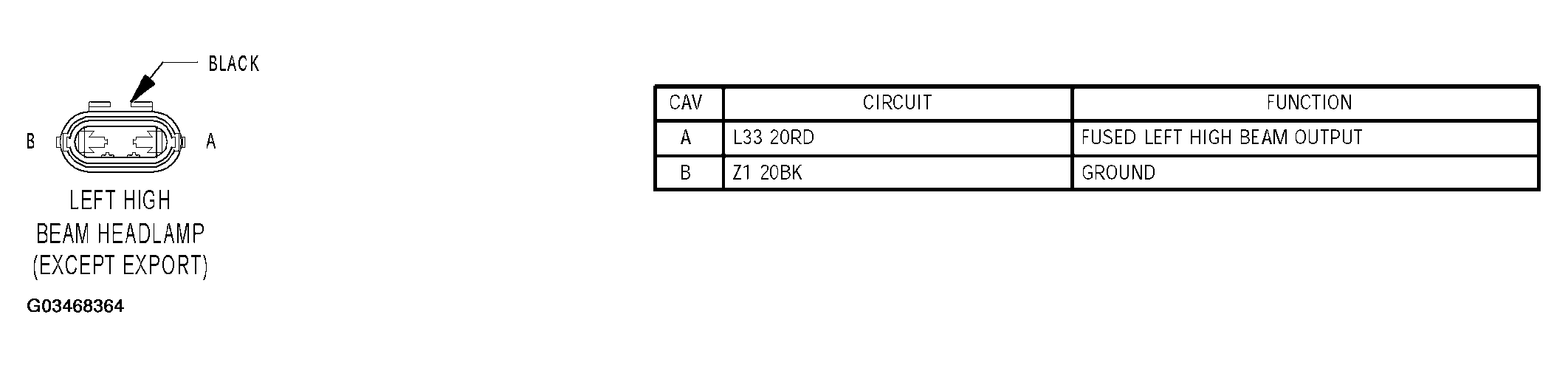

Fig 1: Left High Beam Headlamp Connector End View
G03468364Courtesy of CHRYSLER GROUP, LLC
