Left Rear Power Window Switch Connector End View
Left Rear Power Window Switch Connector End View

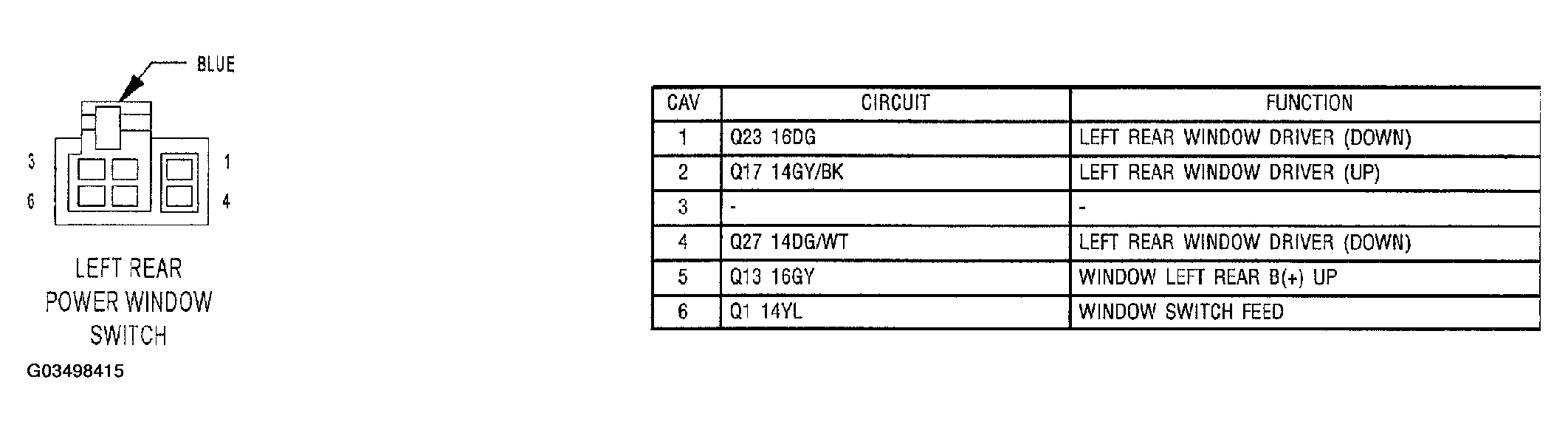

Fig 1: Left Rear Power Window Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
