Left Side Impact Airbag Control Module Connector End View

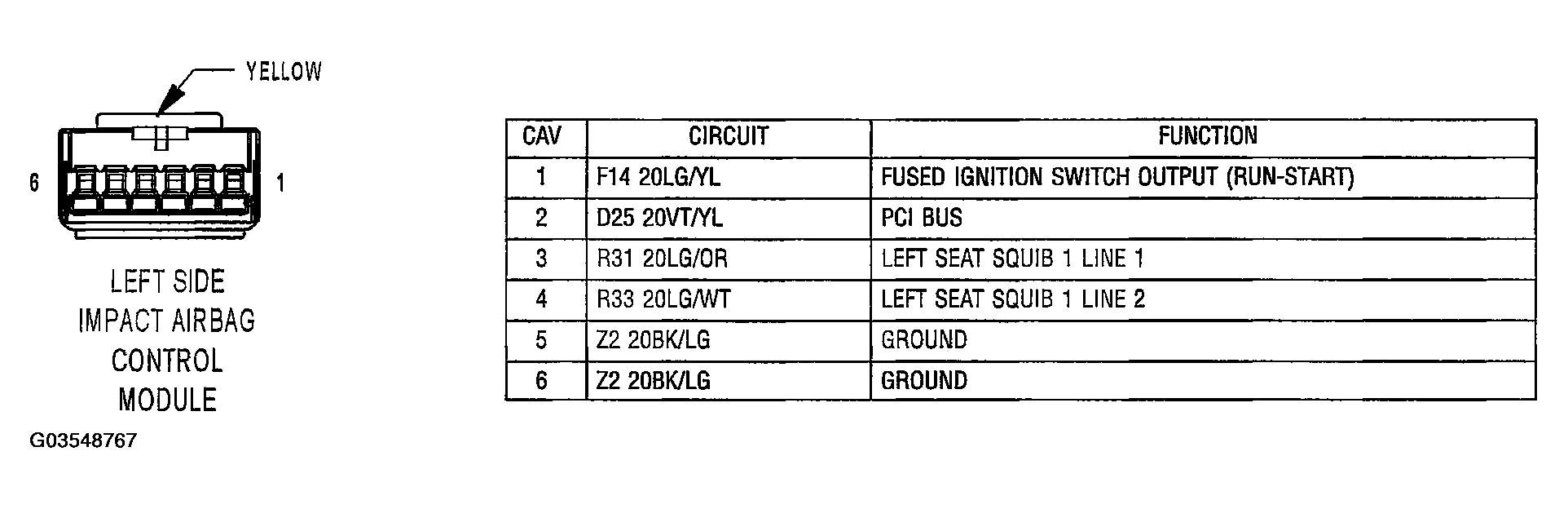

Fig 1: Left Side Impact Airbag Control Module
G03548767Courtesy of CHRYSLER GROUP, LLC
