Manual Temperature Control Head C1 Connector End View

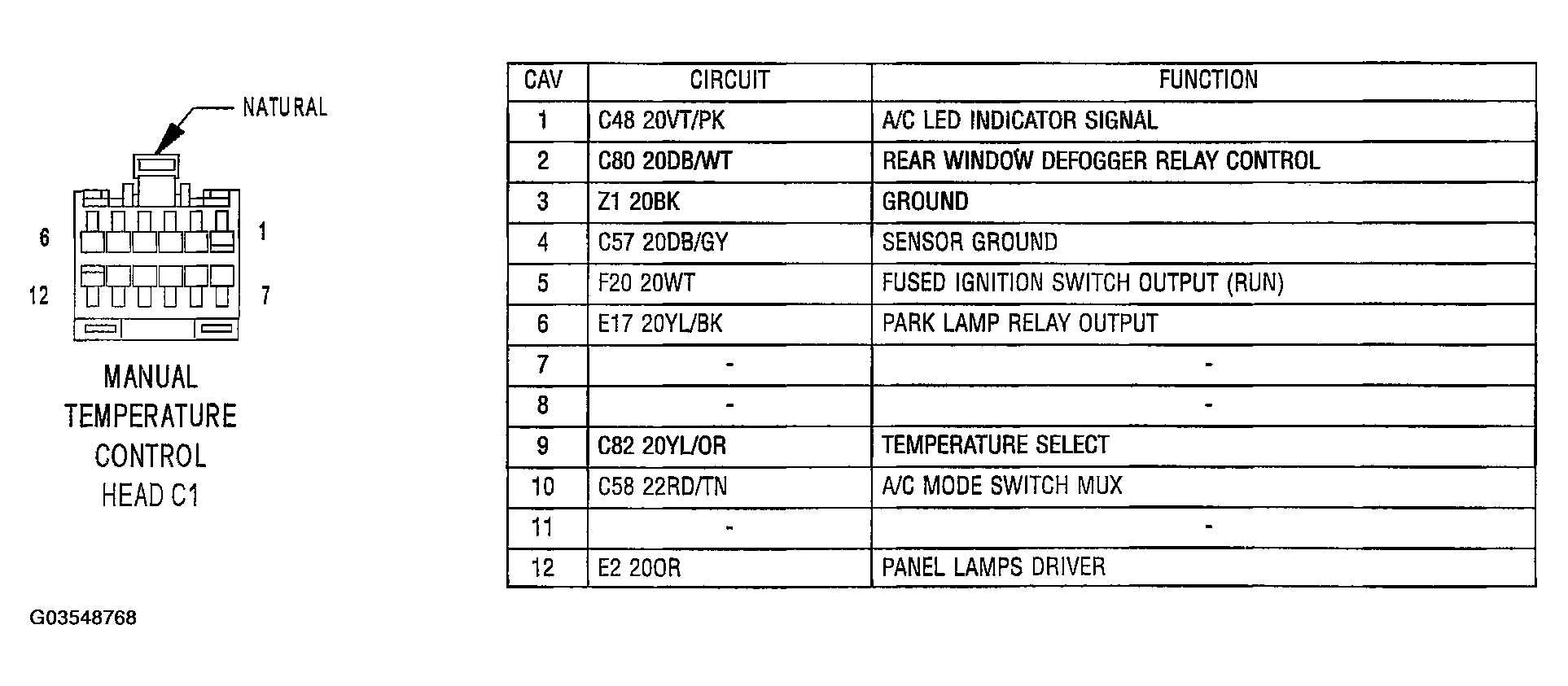

Fig 1: Manual Temperature Control Head C1
G03548768Courtesy of CHRYSLER GROUP, LLC
