Memory Heated Seat/Mirror Module C2 Connector End View
Memory Heated Seat/Mirror Module C2 Connector End View

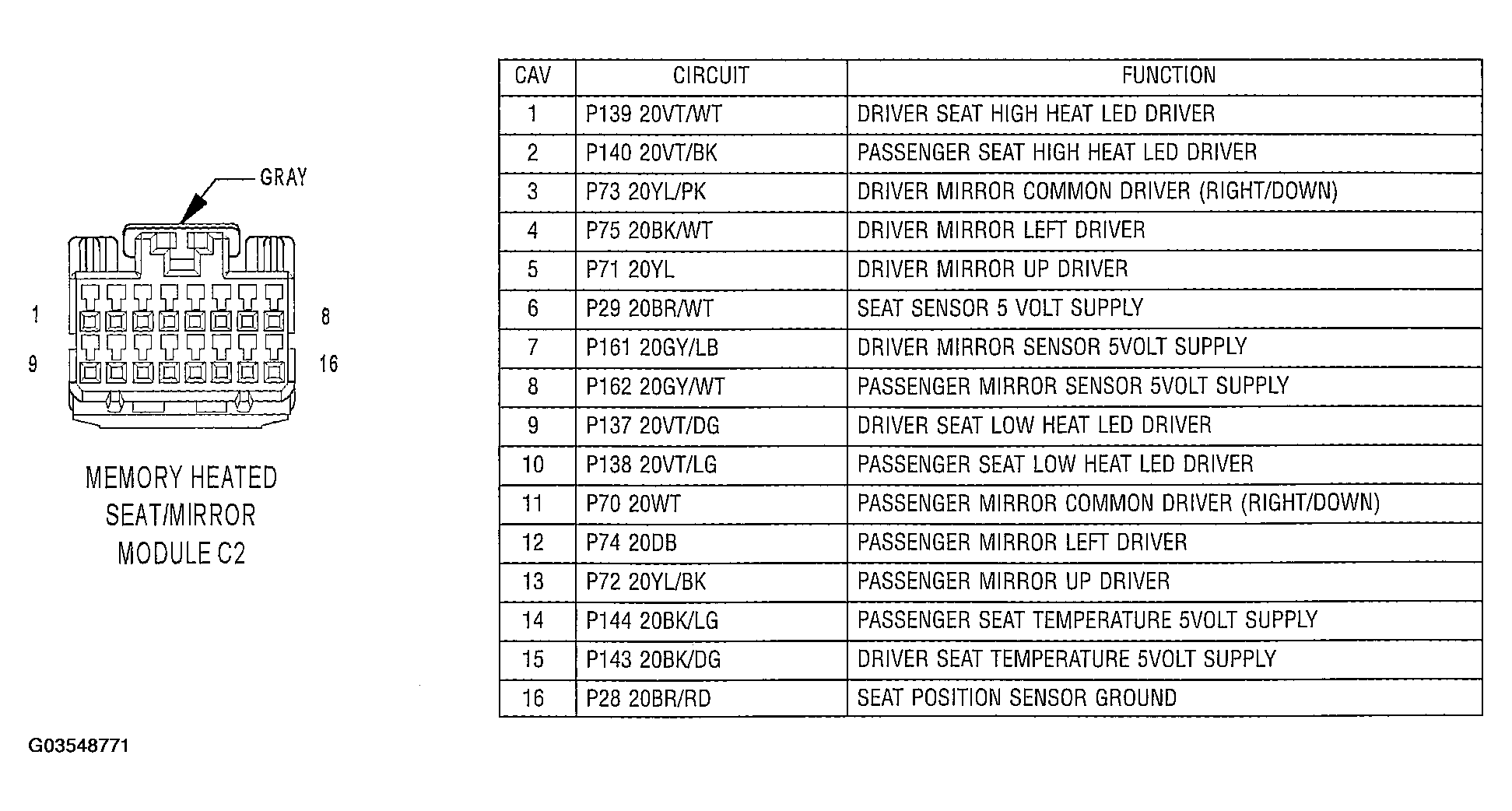

Fig 1: Memory Heated Seat/Mirror Module C2
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
