Natural Vacuum Leak Detection Assembly Connector End View
Natural Vacuum Leak Detection Assembly Connector End View

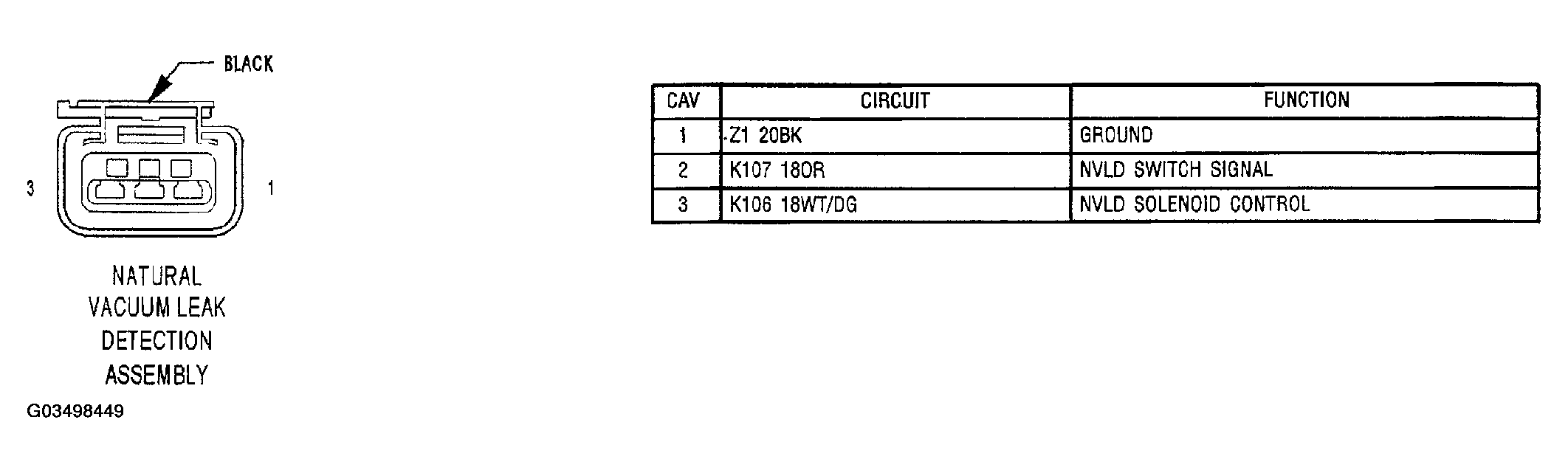

Fig 1: Natural Vacuum Leak Detection Assembly Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
