ORC Airbag Control Module Connector End View
ORC Airbag Control Module Connector End View

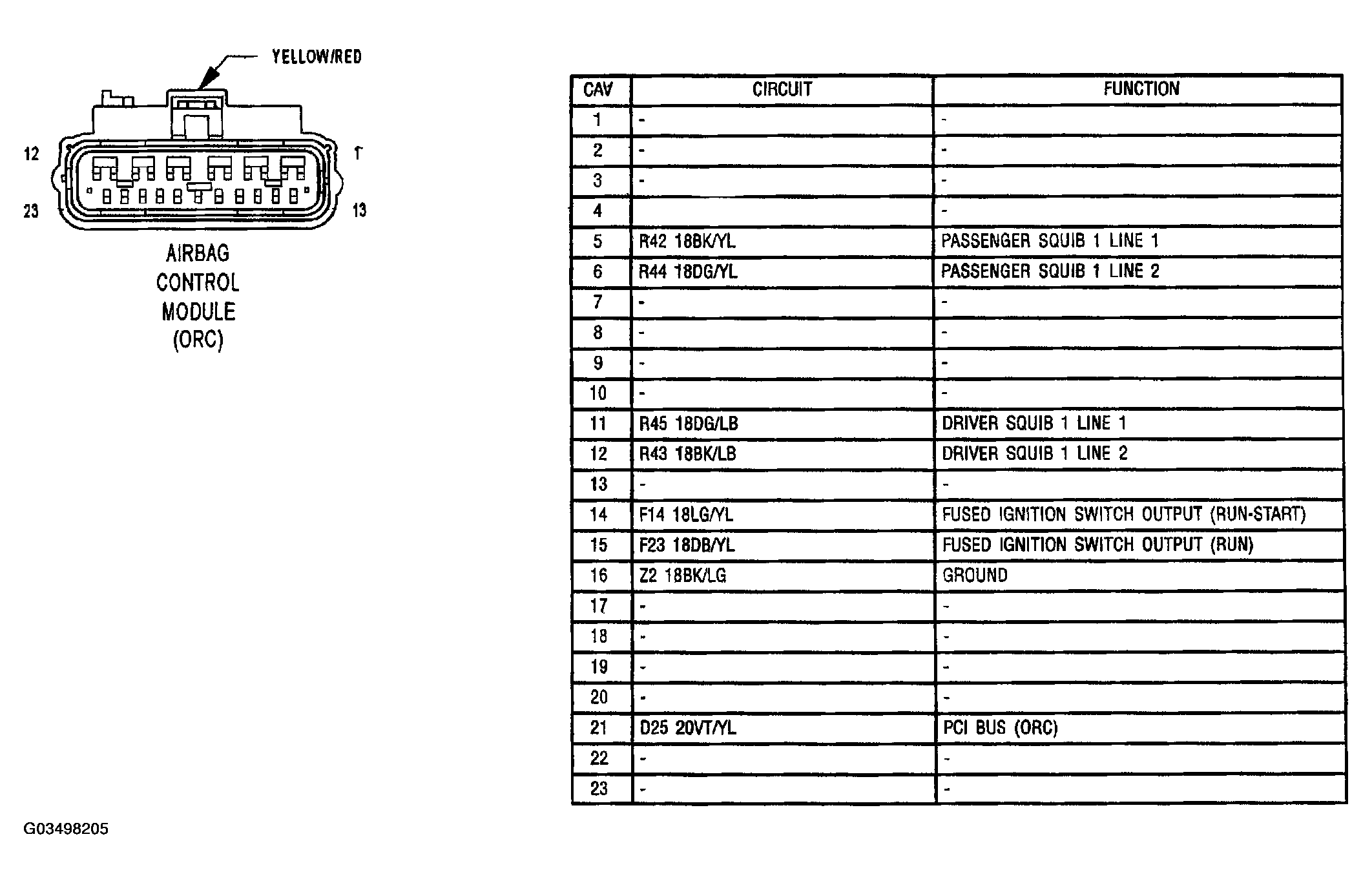

Fig 1: ORC Airbag Control Module Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
