Passenger Power Mirror Connector End View
Passenger Power Mirror Connector End View

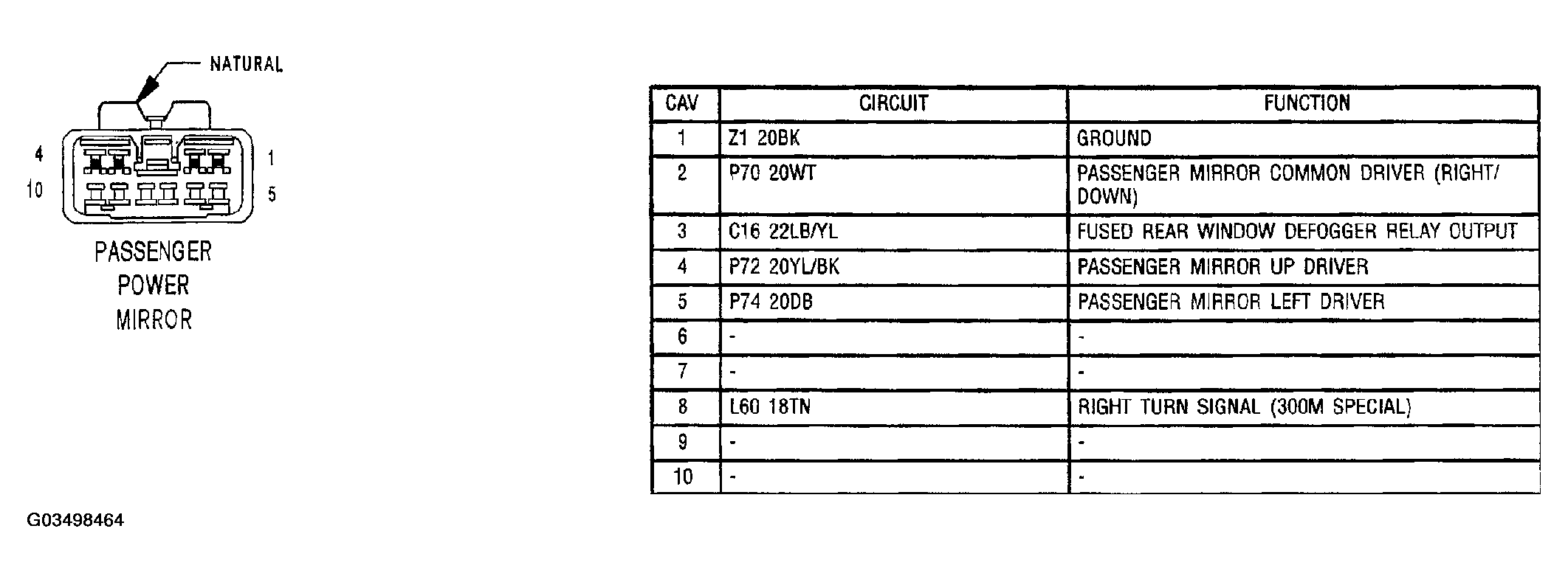

Fig 1: Passenger Power Mirror Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
