Passenger Power Seat Front Riser Motor Connector End View
Passenger Power Seat Front Riser Motor Connector End View

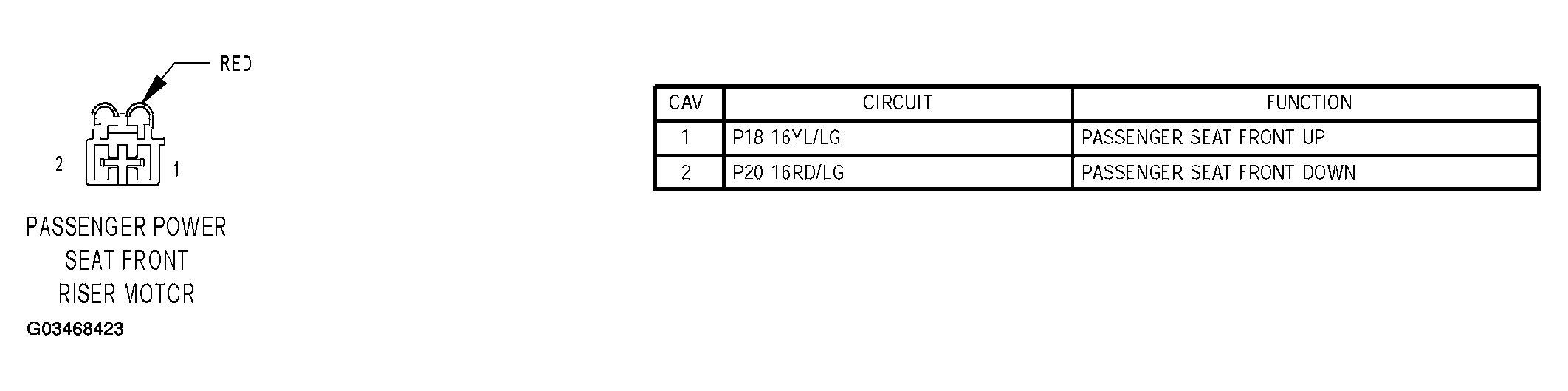

Fig 1: Passenger Power Seat Front Riser Motor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
