Power Amplifier Connector End View (C1)

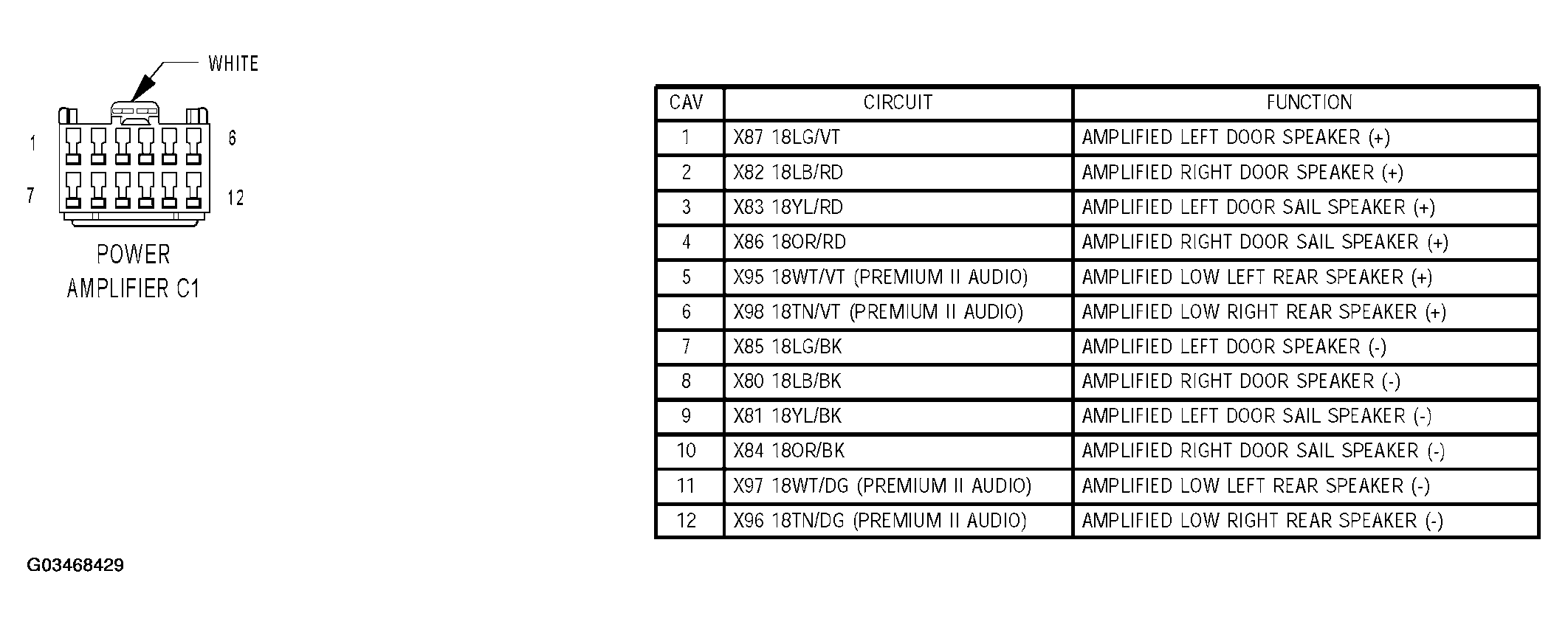

Fig 1: Power Amplifier Connector End View (C1)
G03468429Courtesy of CHRYSLER GROUP, LLC
