Power Amplifier Connector End View (C2)

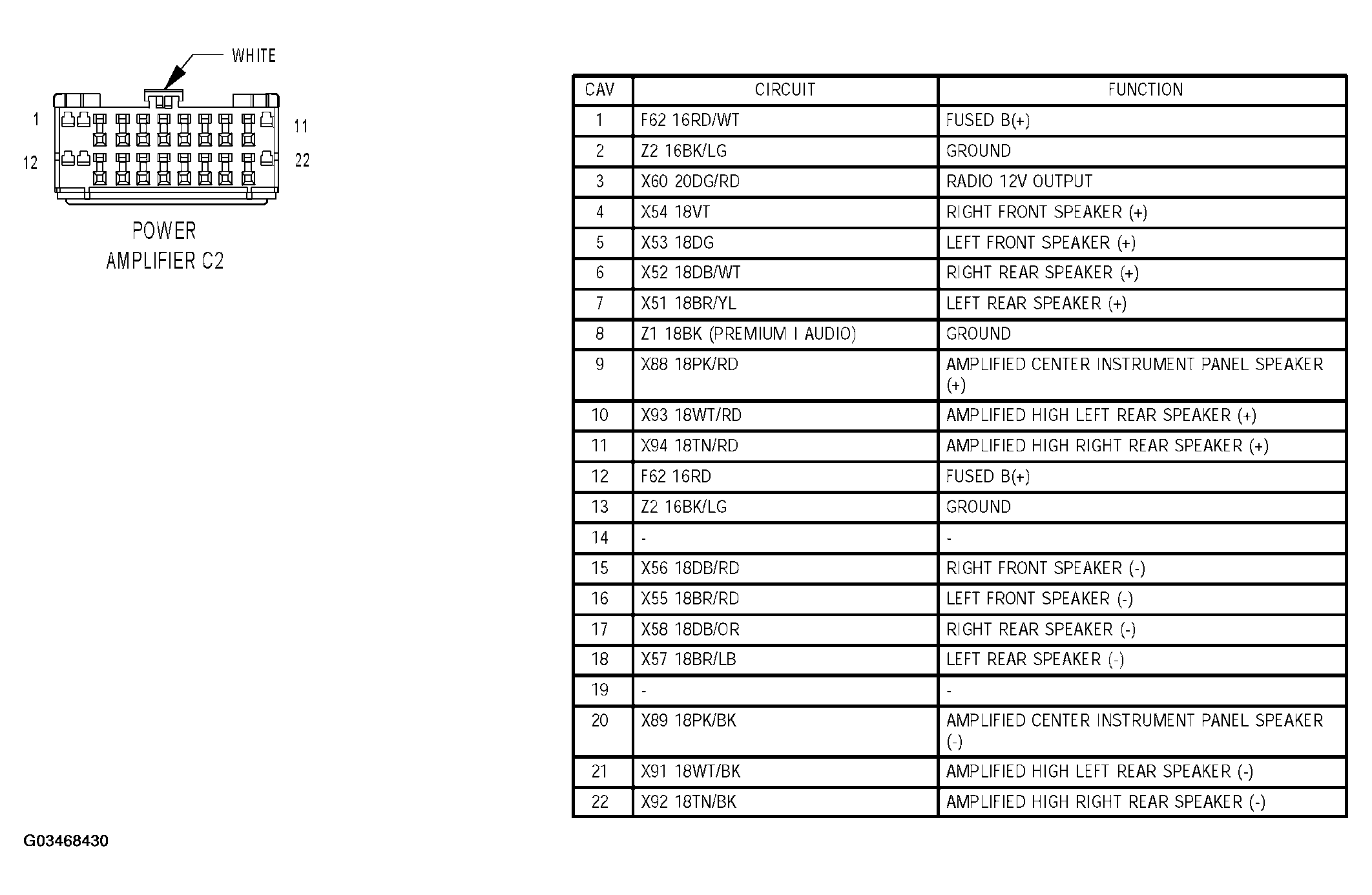

Fig 1: Power Amplifier Connector End View (C2)
G03468430Courtesy of CHRYSLER GROUP, LLC
