Powertrain Control Module C4 Connector End View

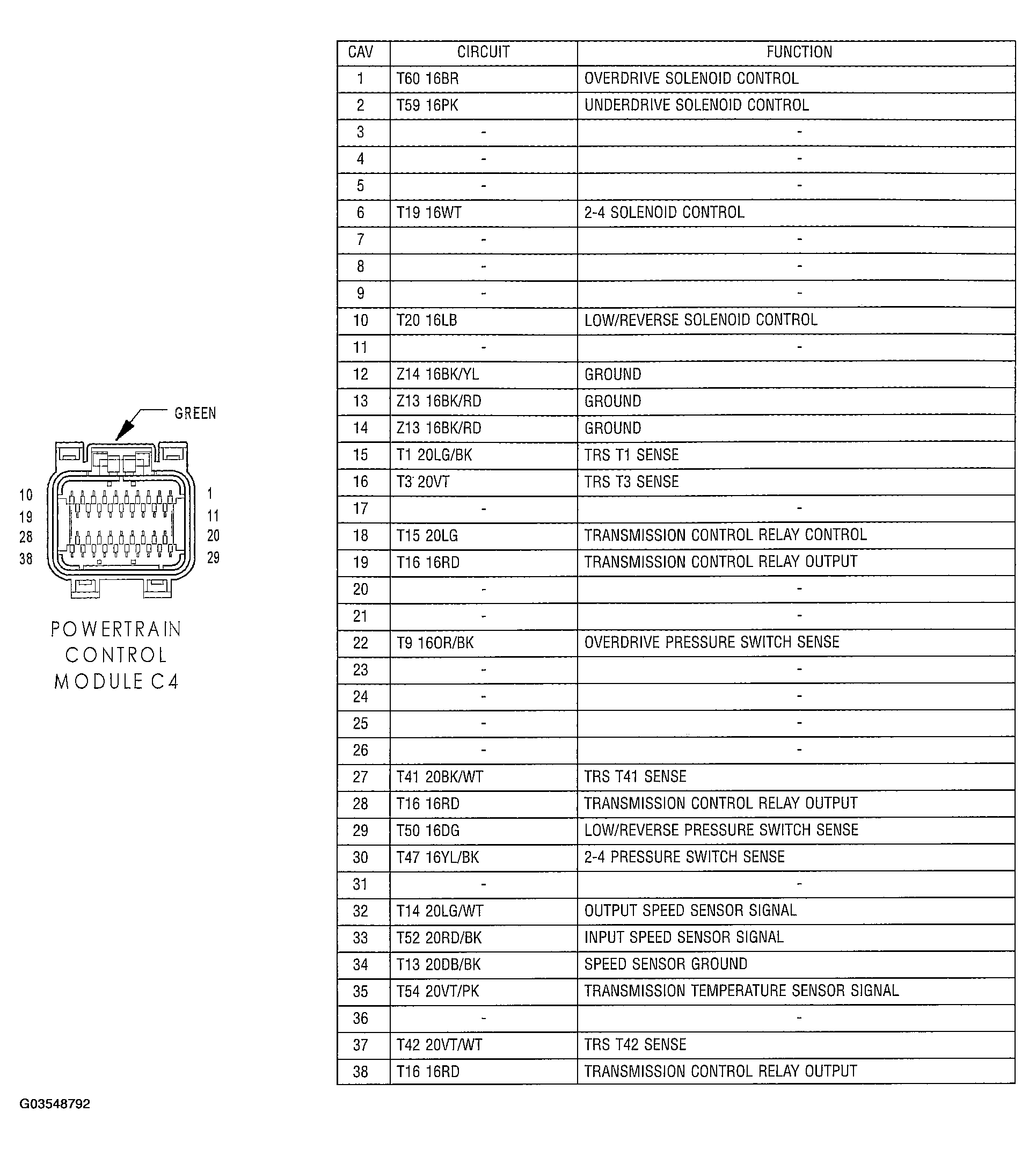

Fig 1: Powertrain Control Module C4
G03548792Courtesy of CHRYSLER GROUP, LLC
