Radio (Base) Connector End View
Radio (Base) Connector End View

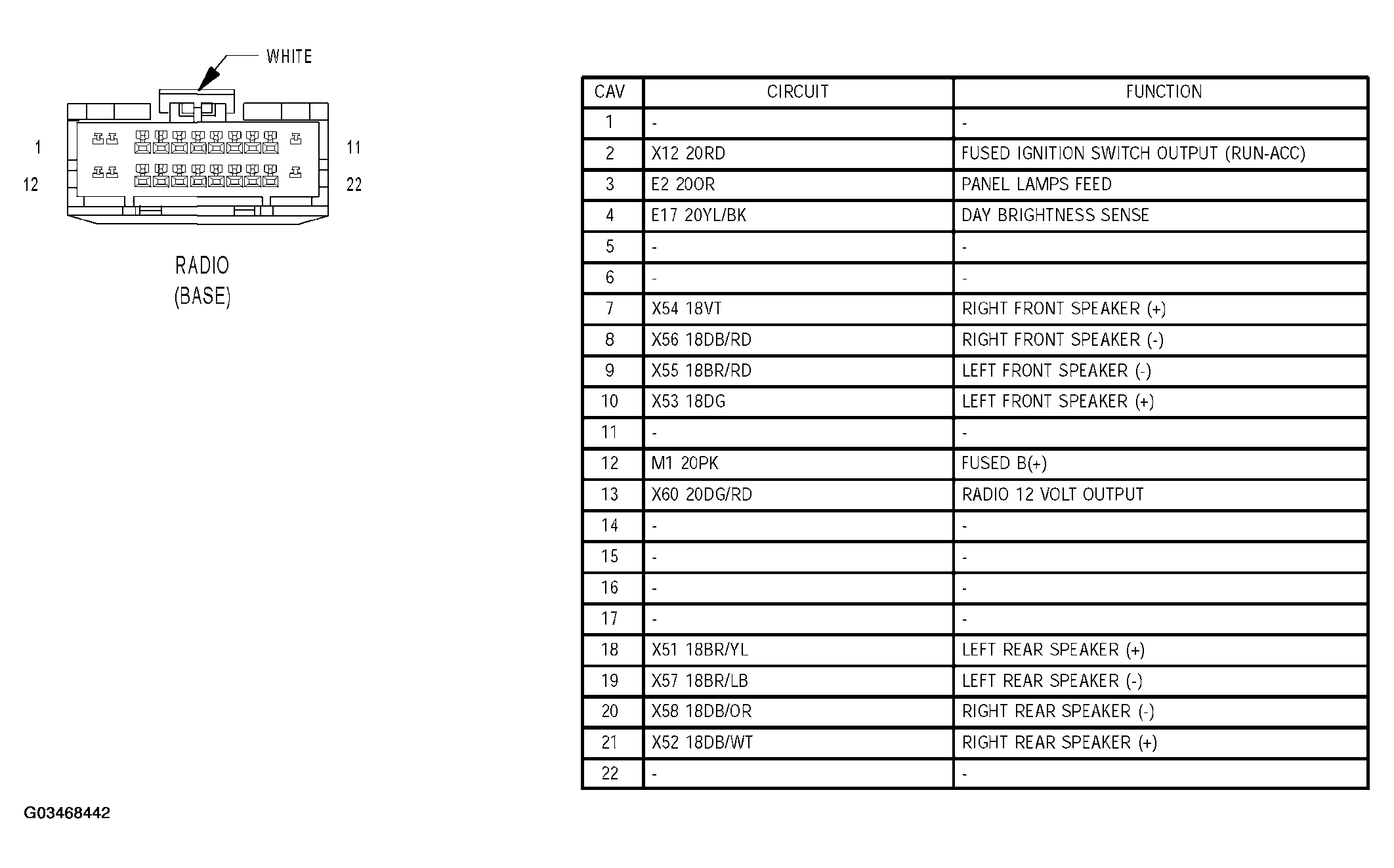

Fig 1: Radio (Base) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
