Radio (Except Base) Connector End View (C1)

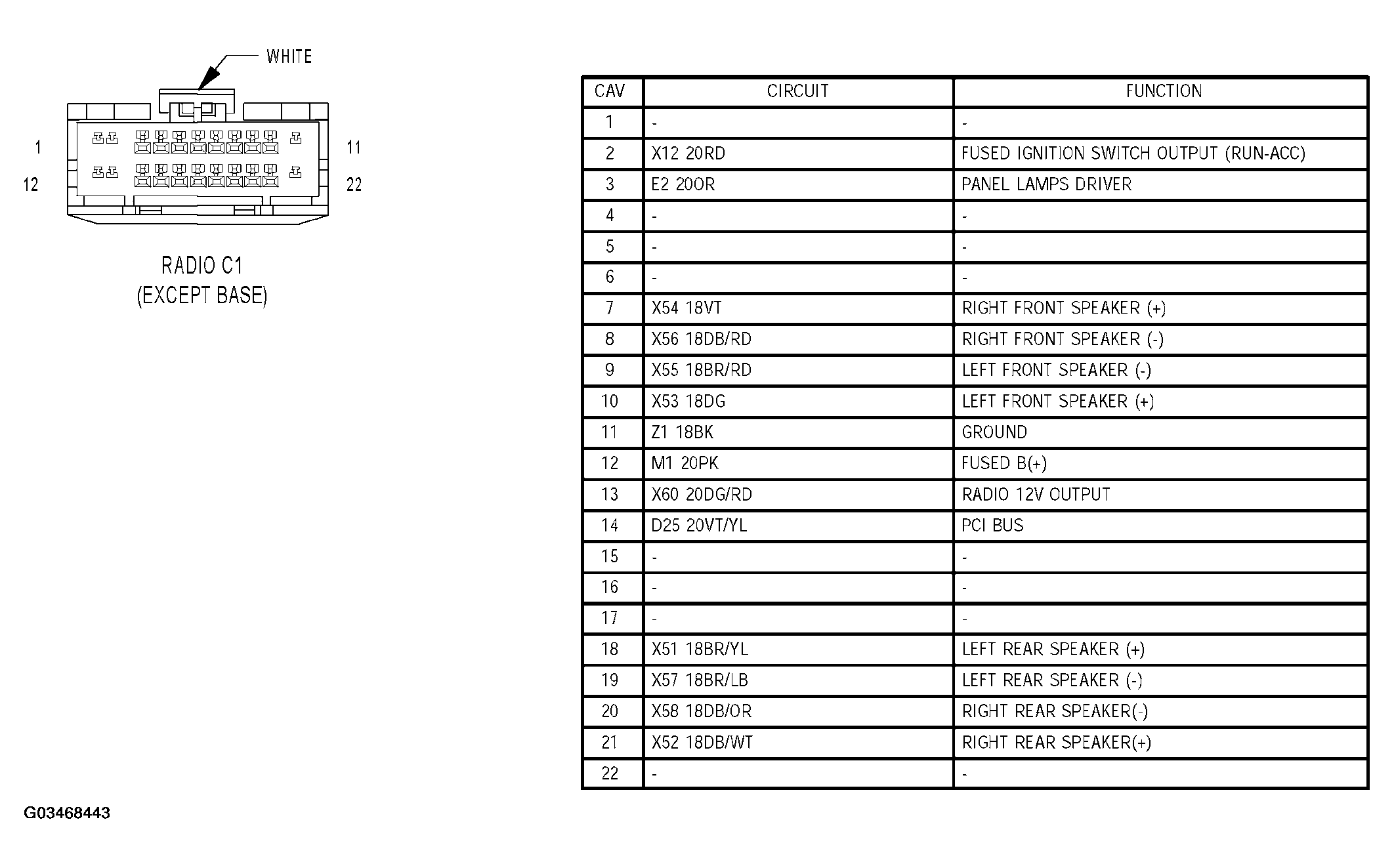

Fig 1: Radio (Except Base) Connector End View (C1)
G03468443Courtesy of CHRYSLER GROUP, LLC
